Gold Plated 50Ω 2 Holes Flange Mount SMA Connector
SMA Connector High Quality Gold Plated 2 Holes Flanges Mount SMA Connector
SMA series is a kind of mini, high-frequency RF coaxial connector. with characteristics of small volume, good bandwidth, superior electrical characteristics. SMA is the most widely used RF coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.
Specification:
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 335VRMS* | |
| Dielectrics Voltage-resistance | 1000VRMS* | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ | |
| VSWR | ≤1.3 | |
Advantages:
√ Rich selection of connector (BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.), more than 500
experienced workers with over 10 production line
√ Specializes in manufacturing RF connector more than 20 years
√ With our own factory with 35,000㎡
√ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect with short delivery
√ Competitive price
√ Monthly average turnover is 10million
√ Custom-made (ODM) orders welcome here
√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE
√ We are committed to providing high-quality products to customers
√ Have long and rich cooperation experience with national project components supply
Outline Drawing:(mm)
Product Cataloge:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
Application:
*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications
*Board-to-board interconnect

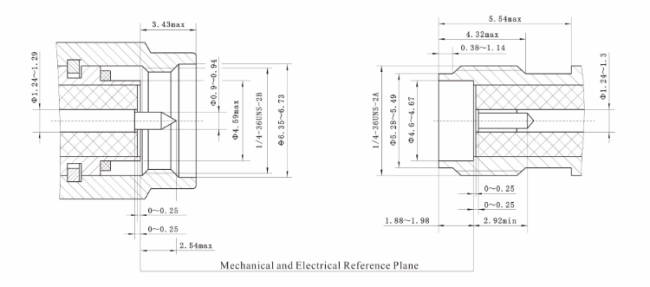

Interface Dimentions:
Similar Products:
1.SMA 4-Holes Flange Mount Right Angle RF Coax Connectors
| Model No. | L | L1 | L2 | D | Note |
| SMA-KWFD | 29 | 15 | 2.9 | 1.3 | |
| SMA-KWFD8 | 15.1 | 3 | 1 | 1.3 | |
| SMA-KWFD103 | 22.4 | 5.4 | 5.7 | 1.3 | |
| SMA-KWFD113 | 34 | 20 | 2.9 | 1.3 | |
| SMA-KWFD118 | 20.1 | 4.8 | 4.2 | 1.3 | |
| SMA-KWFD-120 | 16.1 | 4 | 1 | 1.3 | |
| SMA-KWFD122 | 17.1 | 203 | 4 | 1.3 |
2.Gold Plated Brass 2 Holes Flange Mount Straight RF Coaxial Connector Jack
| Model No. | L | L1 | D | D1 | D2 | Note |
| SMA-KFD193 | 4 | 1.5 | 0.5*0.2 | 4 | 2.2 | Terminal flat side is parralled to the long side of the flange |
| SMA-KFD524 | 5 | 2.5 | 0.5*0.2 | 4 | 2.6 | |
| SMA-KFD773 | 4 | 4 | φ1.3*0.2 | 5.2 | 2.2 | |
| SMA-KFD1207 | 3.5 | 5 | 0.5*0.2 | 4.1 | 2.6 |
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
