Straight 2 holes Flange Mount Gold Plated SMA Connector Male
50Ohm Straight Gold Plated SMA Male RF Coax Connector
- SMA series is a kinds of mini, high-frequency RF coaxial connector.
- It's produced by Xi'an Elite Electronics Co., Ltd. With characteristics of small volume,good bandwidth,superior electrical characteristics.
- SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.
- The high performance connector developed by our company can reach to 20GHz.
Specification of SMA RF Connectors:
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | Connect with solf cable DC~12.4GHz | |
| Connect with semi-rigid cable DC~18GHz | ||
| Rated Voltage | 335VRMS* | |
| Dielectrics Voltage-resistance | 1000VRMS* | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ | |
| VSWR | ≤1.3 | |
Features of SMA RF Connectors:
- Sub-miniature coaxial connectors
- Screw-on coupling
- Light weight, compact and vibration proof design
- Available in nickel or gold plating , in a wide variety of orientations and PCB terminations
- Broad range with male, female and adapters variants.
- Frequency range up to 18 GHz
- Intermateable with SMA2.9.
- Excellent return loss

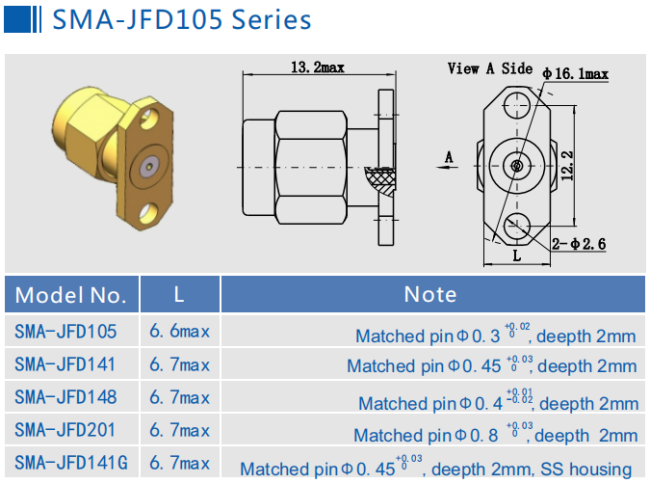

Interface Dimentions:
Material & Mechanical Characteristics:
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass Gold plated |
| Female | Sn-P Bronze Gold plated | |
| Elastic Contact | Beryllium bronze Nickel plated | |
| Shell and other Metal Parts | Brass Nickel plated | |
| Stainless Passivation | ||
| Crimping Sleeve | Brass Nickel plated | |
| Tightening torque of connection | 0.79－1.13N .m | |
| Durability | 500 cycles | |
| Sealing Ring | Silicone Rubber | |
| Insulators | PTFE | |
Advantages of SMA RF Connecctors:
1. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required
2. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc
3. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz
4. SMA RF connectors are available in quick connect, push-on or standard interface, straight, 90 degrees versions,as well as bulkhead, or 4 hole panel configurations

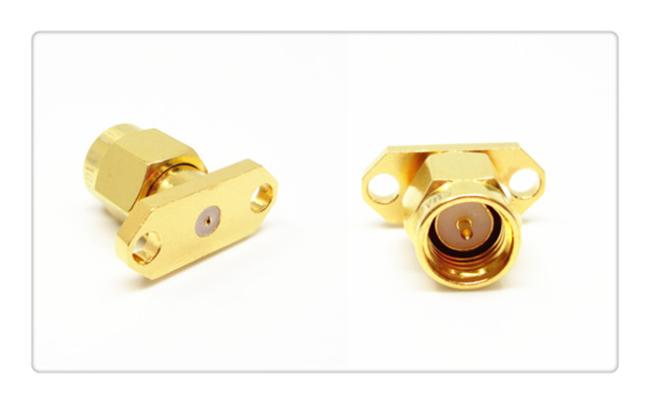

Detailed Images of SMA RF Coax Connectors:
NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
Related Product

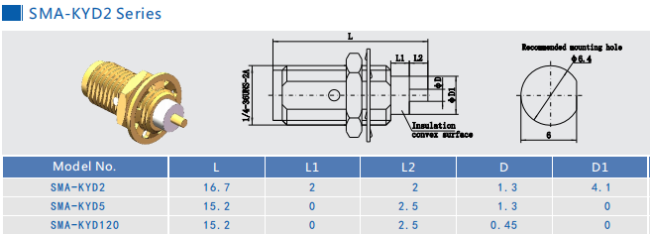

1.SMA Female Bulkhead Mount RF Connectors for PCB

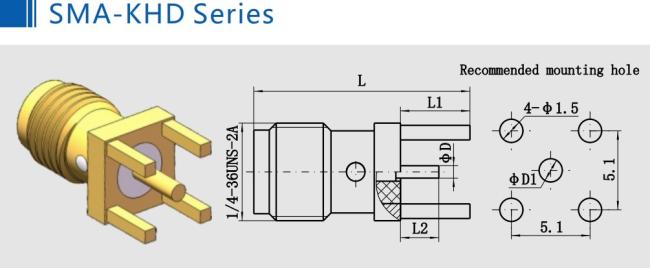

2.SMA Female PCB Solder Mount RF Connector
