SMA 2 Holes Flange Mount 90 Degree Female Coaxial Connector
2 Holes Flange Mount SMA Right Angle 90-degree Female Coaxial Connectors

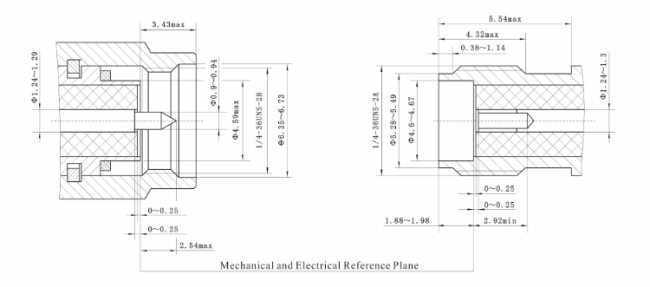

SMA series is a miniature RF coaxial connector. It has the characteristics of small volume, good bandwidth and excellent electrical performance. SMA is the most widely used RF coaxial connector in microwave communication and microwave measurement equipment. The high performance connector developed by our company can reach 20GHz.
Specification:
| Electronic and Material Characterials | ||
| Impedance | 50Ω | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 335 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 1000 VRMS (Maximum sea-level) | |
| VSWR | ≤1.3 | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated | |
| Shell and other metal parts | Brass gold plated | |
| Stainless steel passivated | ||
| Cable sheath | Brass nickle plated | |
| Insulator | PTFE | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79 -1.13 N.m | |
Product Cataloge:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |

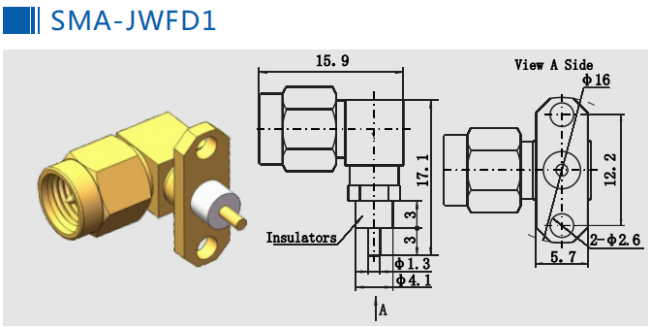

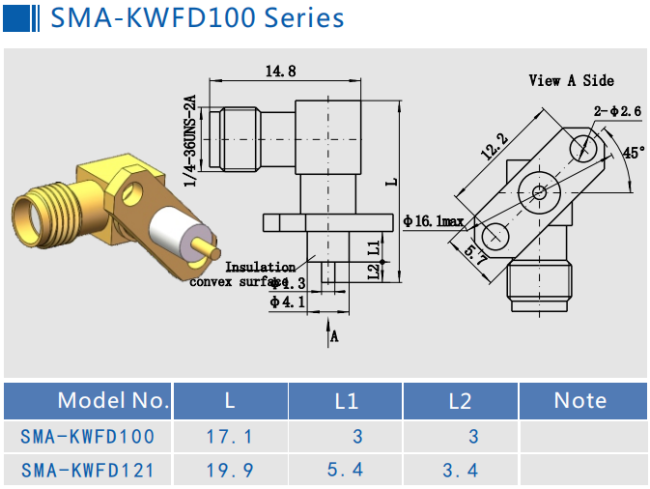

Outline Drawing:(mm)
Application:
*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications
*Board-to-board interconnect
Similar Products:
1.Male Flange Mount SMA connectors
| Model No. | L | L1 | L2 | D | D1 | D2 |
| SMA-JFD152 | 19.9max | 4 | 1.5 | 0.8 | 4.1 | 2.2 |
| SMA-JFD154 | 18.9max | 3 | 1 | 0.5 | 4 | 2.6 |
| SMA-JFD157 | 22.2max | 3 | 2 | 0.5 | 4 | 2.2 |
| SMA-JFD189 | 19.9max | 4 | 1.5 | 0.5*0.2 | 4 | 2.2 |

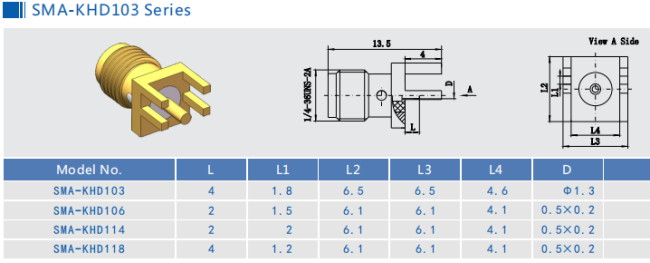

2.Female Pcb Panel Solder SMA RF Connectors
3.Male Right Angle SMA Connectors

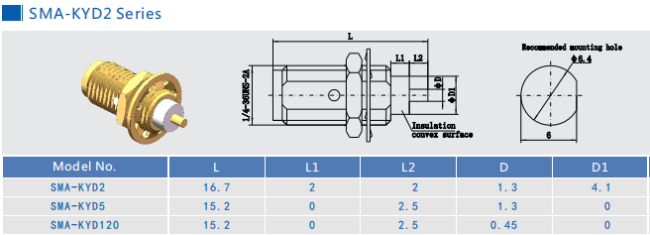

4.Bulkhead Mount Female SMA RF Connectors

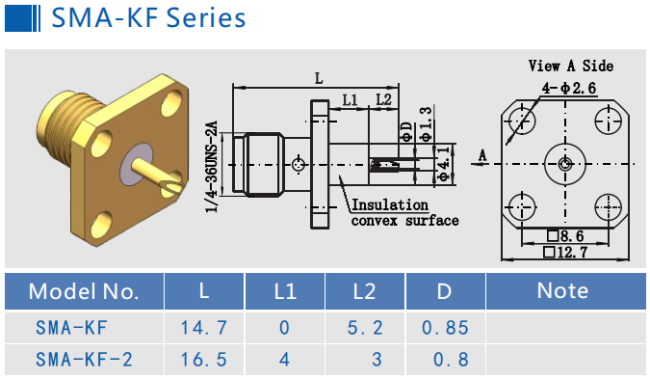

5.Female Flange Mount SMA RF Connectors
