335V 18GHz Gold Plated Female SMA Bulkhead Connector
Brass SMA Coaxial RF Connectors Gold Plated Female SMA Bulkhead Connector
SMA series is a miniature RF coaxial connector developed and produced according to Mil-C-39012. It has the characteristics of small volume, good bandwidth and excellent electrical performance. SMA is the most widely used RF coaxial connector in microwave communication and microwave measurement equipment. The high performance connector developed by our company can reach 20GHz.
Specification:
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | Connect with solf cable DC~12.4GHz | |
| Connect with semi-rigid cable DC~18GHz | ||
| Rated Voltage | 335VRMS* | |
| Dielectrics Voltage-resistance | 1000VRMS* | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ | |
| VSWR | ≤1.3 | |
Features:
-Sub-miniature coaxial connectors
-Screw-on coupling
-Light weight, compact and vibration proof design
-Available in nickel or gold plating in a wide variety of orientations and PCB terminations
-Broad range with male, female and adapters variants.
-Frequency range up to 18GHz
-Intermateable with SMA, 2.9.
-Excellent return loss
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass Gold plated |
| Female | Sn-P Bronze Gold plated | |
| Elastic Contact | Beryllium bronze Nickel plated | |
| Shell and other Metal Parts | Brass Nickel plated | |
| Stainless Passivation | ||
| Crimping Sleeve | Brass Nickel plated | |
| Tightening torque of connection | 0.79－1.13N .m | |
| Durability | 500 cycles | |
| Sealing Ring | Silicone Rubber | |
| Insulators | PTFE | |

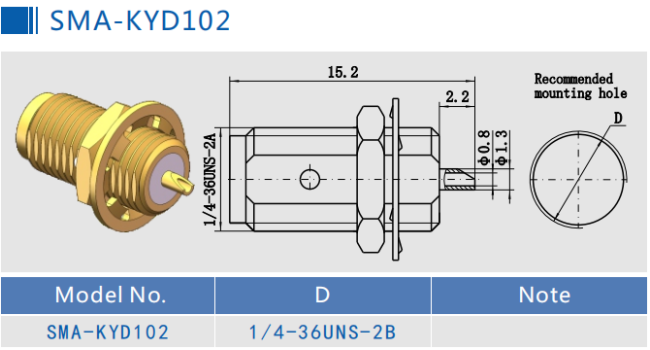

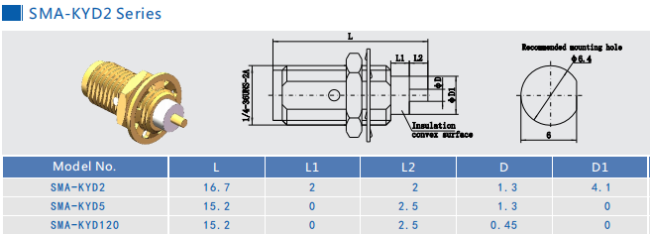

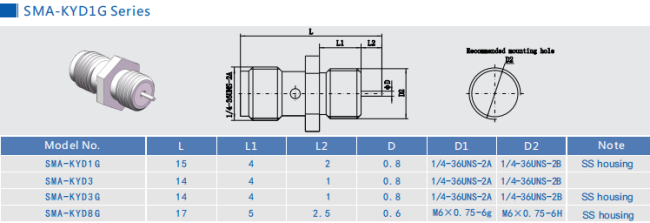

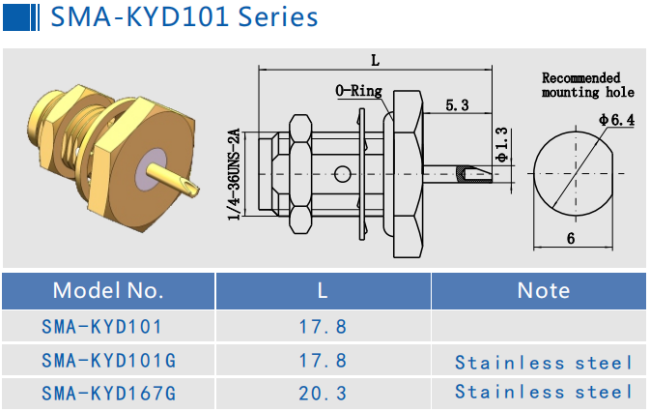

Outline Drawings of SMA RF Coax Connectors:
(mm)
Advantages of SMA RF Connecctors:
- SMA RF connector is high quality and quick combinations by simply screwing two connectors together with no soldering or crimping required
- SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc
- SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz
- SMA RF connectors are available in quick connect, push-on or standard interface, straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations
Application:
- Network
- Radar
- Automotive
- Satcom
- Computer/LANs
- Broadband
- Instrumentation
- Phased array antennas
- Telecommunications
