Passivated 50 Ohm Female Bulkhead Mount SMA RF Connector
50 Ohm Stainless Steel Bulkhead Mount SMA Rf Connectors Jack
1.SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer.
2.SMA 50 ohm connectors are semi-precision units that provide excellent electrical performance from DC to 20 GHz and outstanding mechanical durability.
3.SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.
Specifiacation of SMA Rf Connectors:
| Interface according to | IEC60169-15 |
| Impedance | 50Ω |
| Freqency Range | DC to 18GHz |
| Insertion Loss | ≤0.30dB |
| VSWR | ≤1.2(DC-6GHz) |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
| Dielectric | PTFE |
Key Features:
- Sub-miniature coaxial connectors
- Screw-on coupling
- High RF Performance
- passivated stainless steel
- gold plated/nickle plated
- Wide hermetically sealed range
- Space qualified range of product
- SMA extended frequency 20GHz
Product Cataloge:
| RF Adapter |
| SMA RF Connector |
| SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
Application:
- Microwave Systems Telecommunications
- Space
- 5G Solutions
- Measurement Systems
- Mobile Telephone WiFi Antennas Systems
Packaging Details:
* Standard Export Carton
* According to clients' requirements
Interface Dimensions:
Related Product

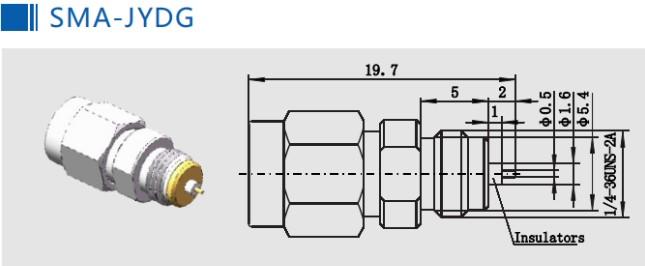

1.SMA Bulkhead Threaded Mount Male Rf Connectors
| Model No. | Note |
| SMA-JYDG | Stainless Steel housing |
2.Male Bulkhead Theaded Mount SMA Rf Connectors
| Model No. | Note |
| SMA-JYD1G | Stainless Steel housing |
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
