Gold Plated Flange Mounting 50Ohm SMA Female Connector
SMA series is a kind of mini, high-frequency RF coaxial connector.its developed and produced by Xi'an Elite Electronics Co., Ltd. With characteristics of small volume,good bandwidth, superior electrical characteristics.
SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.

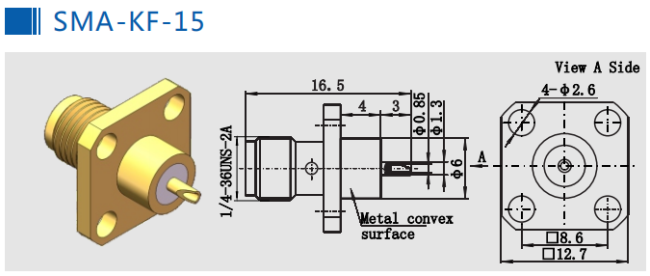

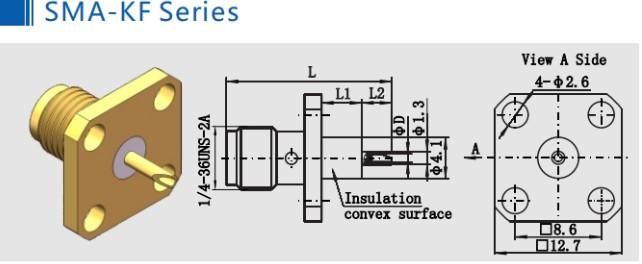

Outline Drawing:(mm)
Electrical Characteristics:
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | Connect with solf cable DC~12.4GHz | |
| Connect with semi-rigid cable DC~18GHz | ||
| Rated Voltage | 335VRMS* | |
| Dielectrics Voltage-resistance | 1000VRMS* | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ | |
| VSWR | ≤1.3 | |
Material & Mechanical Characteristics:
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass Gold plated |
| Female | Sn-P Bronze Gold plated | |
| Elastic Contact | Beryllium bronze Nickel plated | |
| Shell and other Metal Parts | Brass Nickel plated | |
| Stainless Passivation | ||
| Crimping Sleeve | Brass Nickel plated | |
| Tightening torque of connection | 0.79－1.13N .m | |
| Durability | 500 cycles | |
| Sealing Ring | Silicone Rubber | |
| Insulators | PTFE | |
Features:
- Sub-miniature coaxial connectors
- Screw-on coupling
- Light weight, compact and vibration proof design
- Available in nickel or gold plating in a wide variety of orientations and PCB terminations
- Broad range with male, female and adapters variants.
- Frequency range up to 18GHz
- Intermateable with SMA2.9.
- Excellent return loss
Applications
- Base Stations
- Antennas
- Telecommunications
- Instrumentation
- 5G Solution
