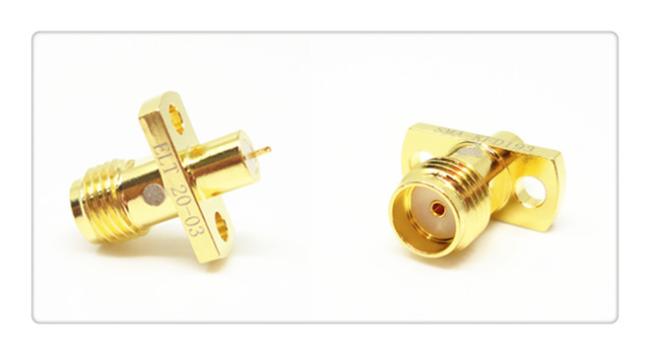

Gold Plated Brass 2 Holes Flange Mount Straight RF Coaxial Jack Microstrip Connector
Gold Plated Brass 2 Hole Flange Mount Straight RF Coaxial Jack Connector
1.SMA 50 ohm connectors are semi-precision units that provide excellent electrical performance from DC to 20 GHz and outstanding mechanical durability.
2.SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz
3.SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead or 4 hole panel configurations.
4.SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer.
Specifiacation of SMA Rf Connectors:
| Interface according to | IEC60169-15 |
| Impedance | 50Ω |
| Freqency Range | DC to 18GHz |
| Insertion Loss | ≤0.30dB |
| VSWR | ≤1.2(DC-6GHz) |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
Outline Drawing of SMA RF Coax Connectors:
| Model No. | L | L1 | D | D1 | D2 | Note |
| SMA-KFD193 | 4 | 1.5 | 0.5*0.2 | 4 | 2.2 | Terminal flat side is parralled to the long side of the flange |
| SMA-KFD524 | 5 | 2.5 | 0.5*0.2 | 4 | 2.6 | |
| SMA-KFD773 | 4 | 4 | φ1.3*0.2 | 5.2 | 2.2 | |
| SMA-KFD1207 | 3.5 | 5 | 0.5*0.2 | 4.1 | 2.6 |
Material & Mechanical Characteristics:
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass Gold plated |
| Female | Sn-P Bronze Gold plated | |
| Elastic Contact | Beryllium bronze Nickel plated | |
| Shell and other Metal Parts | Brass Nickel plated | |
| Stainless Passivation | ||
| Crimping Sleeve | Brass Nickel plated | |
| Tightening torque of connection | 0.79－1.13N .m | |
| Durability | 500 cycles | |
| Sealing Ring | Silicone Rubber | |
| Insulators | PTFE | |
Key Features:
- Using a threaded interface
- Frequency range up to 18GHz Sub-miniature coaxial connectors
- Available in passivation or gold plating
- Wide variety of orientations and PCB terminations
- Available in straight or right angle versions
- With bulkhead, 2 hole panel, 4 hole panel or mountless options.
- Broad range with male, female and adapters variants.
- Brass and stainless steel material options
Applications
- Telecommunications
- Base Stations
- Antennas
- Instrumentation
- 5G Solutions
Product Cataloge:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
Related Products:
1) Hermetically sealed Female SMA RF Conectors
| Model No. | Note |
| SMA(M)-KFD | Hermetic |
2) Female Bulkheaf Right angle Solder Mount SMA Connector
| Model No. | L | Note |
| SMA-KYWHD | 14.8 | |
| SMA-KYWHD1 | 13.5 |
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
