Female 18GHz Brass 4 Holes Flange Mount SMA Straight RF Connector
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
Within 3-4 weeks
Brand:
ELT (Elite)
Product Description

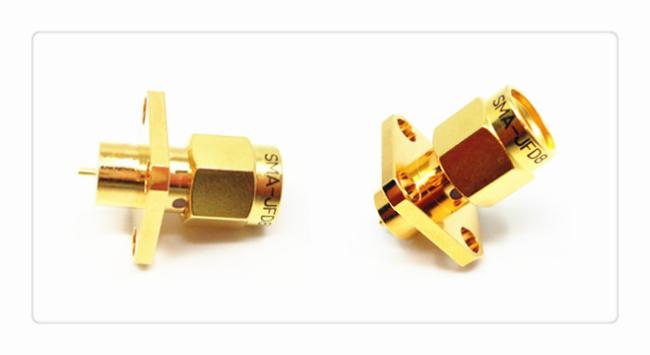

SMA Male Plug 4 Holes Flange Panel Mount RF Coaxial Connectors
1.SMA 50 ohm connectors are semi-precision units that provide excellent electrical performance from DC to 20 GHz and outstanding mechanical durability.
2.SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer.
3.SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.
Outline Drawing:(mm)
| Model No. | L | L1 | D | D1 | D2 | Note |
| SMA-JFD8 | 4 | 1.5 | 2.6 | 0.8 | 6 | |
| SMA-JFD9 | 4 | 2.5 | 2.6 | 1.3 | 6 | |
| SMA-JFD110 | 3 | 1.5 | 2.6 | 0.8 | 6 | |
| SMA-JFD113 | 2.4 | 2.5 | 2.6 | 1 | 6 | |
| SMA-JFD122 | 4 | 2.5 | 2.6 | 0.8 | 6 | |
|
SMA-JFD138 |
4 | 1.5 | 2.6 | 0.5 | 4.1 | |
| SMA-JFD159 | 3 | 1.5 | 2.6 | 0.8 | 6 | |
| SMA-JFD163 | 4 | 3 | 2.6 | 0.8 | 6 | |
| SMA(S)-JFD162 | 3 | 1.5 | 2.6 | 0.8 | 6 | Waterproof |
Specifiacation of SMA Rf Connectors:
| Electronic and Material Characterials | ||
| Impedance | 50Ω | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 335 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 1000 VRMS (Maximum sea-level) | |
| VSWR | ≤1.3 | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated | |
| Shell and other metal parts | Brass gold plated | |
| Cable sheath | Brass nickle plated | |
| Insulator | PTFE | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79 -1.13 N.m | |
Application:
- Microwave Systems Telecommunications
- Space
- 5G Solutions
- Measurement Systems
- Mobile Telephone WiFi Antennas Systems
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
