50 Ohm Brass Gold Plated Mini BMA Male Rf Coaxial Connector
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
Within 3-4 weeks
Brand:
ELT (Elite)
Product Description

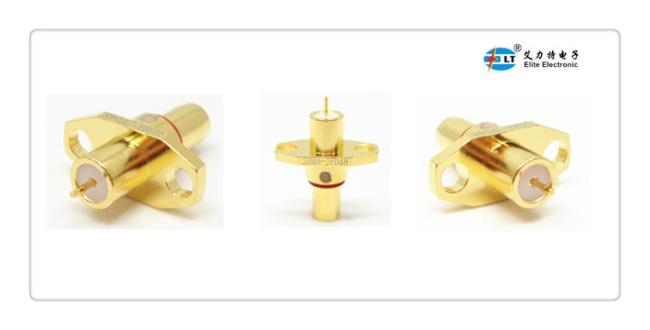

50 Ohm Brass Gold Plated Mini BMA Male Rf Coaxial Connector
SBMA series is a miniaturized product of the BMA series coaxial connectors, it's also blind-mate connectors, with the advantages of good bandwidth, small occupy space, can meet the requirements of microwave device miniaturization and modularization.
Specifiacation:
| Electrical Characteristics | ||
| Impedance | 50 Ohm | |
| Frequency Range | DC~28GHz | |
| Rated Voltage | 250 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 675 VRMS (Maximum sea-level) | |
| Insulation Resistance | >=5000MOhm | |
| Contact Resistance | Outer conductor | <=3mOhm |
| Center conductor | <=6 mOhm | |
| VSMR | <=1.25 | |
| Insertion Loss | ≤0.30dB | |
Application:
- Microwave Systems Telecommunications
- Space
- 5G Solutions
- Measurement Systems
- Mobile Telephone WiFi Antennas Systems
Other Products:
1.SMA 90-degree flange mount connector
| Model No. | L | L1 | D | Note |
| SMA-KWFD101 | 3 | 3 | 1.3 | |
| SMA-KWFD101G | 3 | 3 | 1.3 | SS housing |
| SMA-KWFD115 | 4 | 2 | 0.6 | |
| SMA-KWFD131 | 15 | 3 | 1.3 | |
| SMA-KWFD147 | 4 | 4 | 1.3 | |
| SMA-KWFD169 | 3 | 0.6 | 0.4 | |
| SMA-KWFD234 | 3 | 3 | 1 |

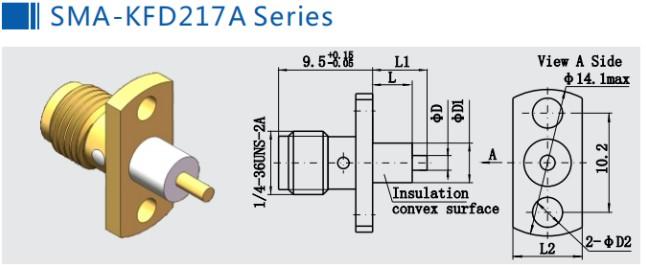

2.50Ohm Brass Female Jack Flange Mount SMA RF Connector
| Model No. | L | L1 | L2 | D | D1 | D2 | Note |
| SMA-KFD217A | 4 | 7 | 6 | 1.3 | 4.1 | 2.2 | |
| SMA-KFD746 | 0 | 1.1 | 5.7 | 1.3 | 0 | 2.6 | |
| SMA-KFD1197 | 4 | 4.5 | 5.7 | 1 | 4.1 | 2.6 | |
| SMA-KFD1304 | 0 | 1 | 5.7 | 0.8 | 0 | 2.2 | |
| SMA-KFD1401 | 3.3 | 5 | 5.7 | 1.3 | 4.1 | 2.6 |
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
