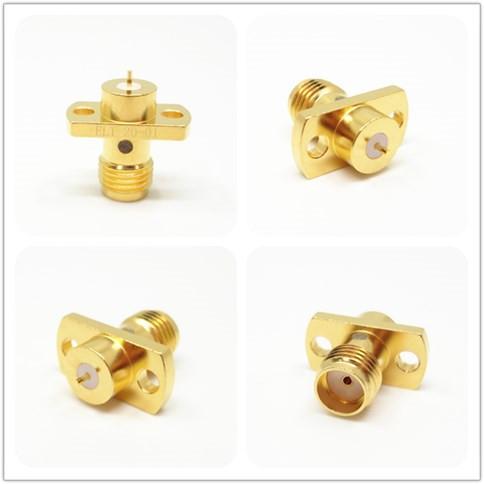

18GHz 2 Holes Flange Mount Connector Female SMA Connectror
SMA RF Connectors 50 Ohm 2 Holes Flange Mount Jack Connectors
1.SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead or 4 hole panel configurations.
2.SMA 50 ohm connectors are semi-precision units that provide excellent electrical performance from DC to 20 GHz and outstanding mechanical durability.
3.SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz

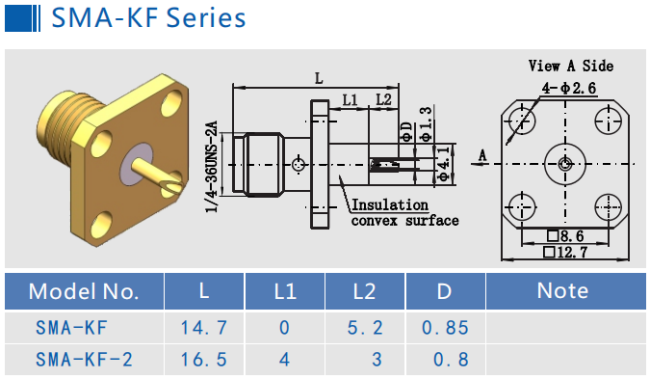

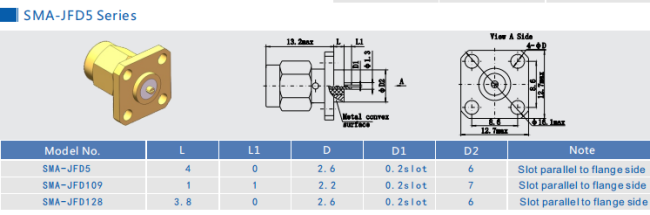

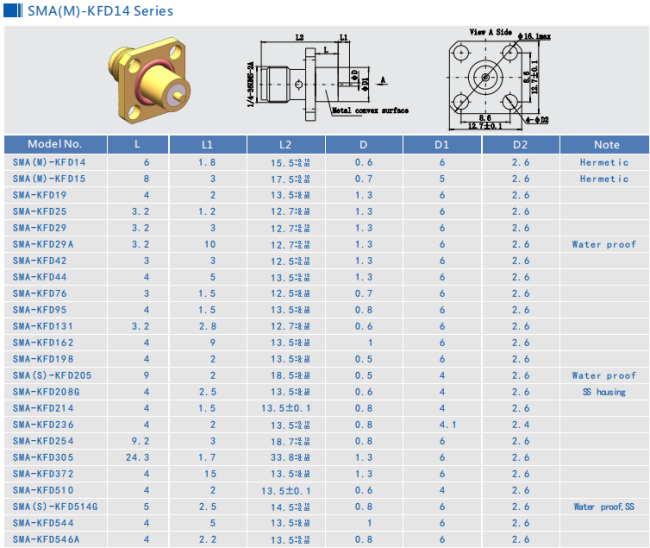

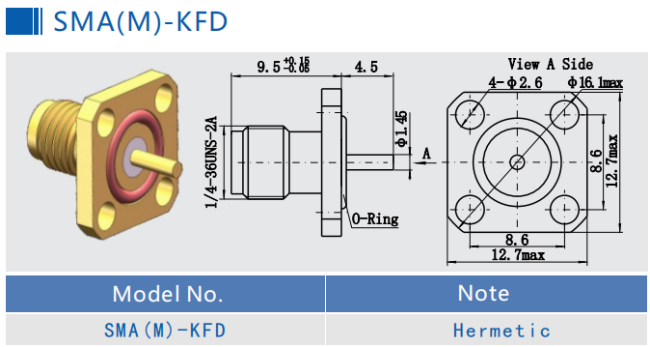

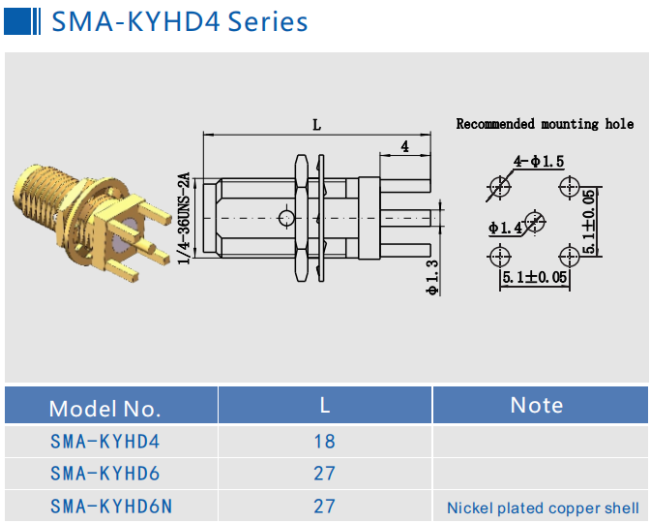

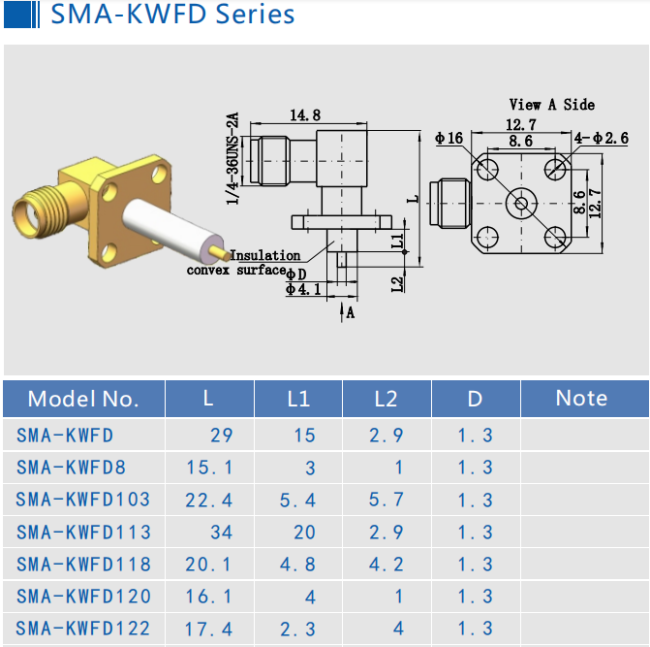

Outline Drawing:(mm)
Specifiacation of SMA Rf Connectors:
| Interface according to | IEC60169-15 |
| Impedance | 50Ω |
| Freqency Range | DC to 18GHz |
| Insertion Loss | ≤0.30dB |
| VSWR | ≤1.2(DC-6GHz) |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
| Dielectric | PTFE |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass Gold plated |
| Female | Sn-P Bronze Gold plated | |
| Elastic Contact | Beryllium bronze Nickel plated | |
| Shell and other Metal Parts | Brass Nickel plated | |
| Stainless Passivation | ||
| Crimping Sleeve | Brass Nickel plated | |
| Tightening torque of connection | 0.79－1.13N .m | |
| Durability | 500 cycles | |
| Sealing Ring | Silicone Rubber | |
| Insulators | PTFE | |
More Details:
Key Features:
- Frequency range up to 18GHz Sub-miniature coaxial connectors
- Using a threaded interface
- Available in passivation or gold plating
- Wide variety of orientations and PCB terminations
- Available in straight or right angle versions
- With bulkhead, 2 hole panel, 4 hole panel or mountless options.
- Broad range with male, female and adapters variants.
- Brass and stainless steel material options
Product Cataloge:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
Applications
- Base Stations
- Antennas
- Telecommunications
- Instrumentation
- 5G Solutions
Similar Product:
1.Female flange mount SMA Connector
2.SMA 90-degree flange mount connector
3.50Ohm Brass Female Jack Flange Mount SMA RF Connector
4.Hermetically Sealed 50Ω 18GHz Gold Plated SMA RF Connector
5.50 Ohm Brass Gold Plated SMA Male Rf Coaxial Connector
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
