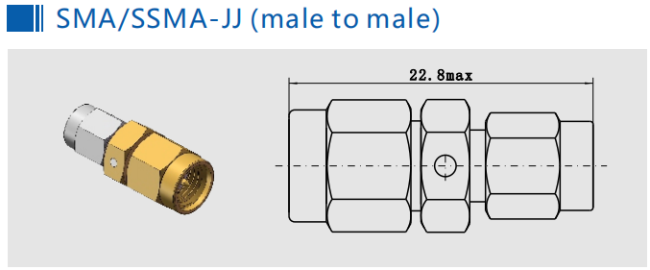

Brass Gold Plated SMA Male to SSMA Male Adapter
Brass Gold plated SMA Male to SSMA Male Adaptors
SMA connectors are small, high frequency RF coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20 Ghz.
SSMA series RF coaxial connectors are miniaturized products of SMA connectors, which have the characteristics of small size, wide frequency bandwidth and high reliability. It is widely used in aviation, microwave communications and other fields.
Outline Drawing and Picture(mm)
Other Adapter:
1.

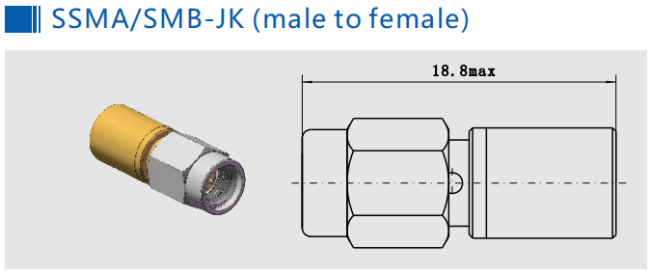

| Mode No. | Description |
| SSMA/SMB-JK | SSMA male to SMB Female adapter |
2.

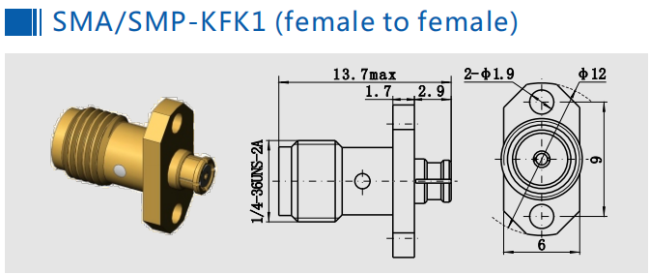

| Model No. | Description |
| SMA/SMP-KFK1 | SMA female to SMP female adapter |
3.
| Model No. | Description |
| SMA/MCX-JK | SMA male to MCX female adapter |
4.
| Model No. | Description |
| SMA/MCX-KWJ | SMA female to MCX male right angle adapter |
5.
| Model No. | Description |
| K/SMP-JJ2 | K male to SMP male adapter |
Application:
| Network | Satcom |
| Computer/LANs | Computer/LANs |
| Mobile communication | Instrumentation |
| Base Station | Mobile communication |
| Outdoor facilities | Radar,microwave |
| Telecommunications | Instrumentation |
| Automotive | Jump line join |
| Basic facility | Radio, TV aerial system |
Product Category:
1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J, Micro D-sub, MDM)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. ODM Products
NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
