2 Holes 50Ω Male to Male BMA to SMP RF Adapter
2 Holes Flange Mount BMA to SMP Male to Male RF Connectors Adapter
BMA series is a kind of blind-mate connector, it’s developed and produced according to IEC1169-33. Adopted new type spring plate structure, the connector with reliable contact and superior electrical characteristics. The advantage is axial and radial can float, every point connectors average space is small, weight is light, it can be used in the blind mate of chassis cabinets. BMA is widely used in chassis cabinets module connect.
SMA connectors are small, high frequency RF coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20 GHz.

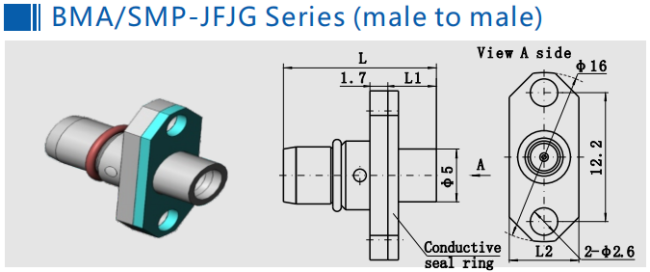

Outline Drawing and Picture(mm)
| Model No. | L | L1 | L2 | Note |
| BMA/SMP-JFJG | 14.65max | 4.6 | 6.6 | SMP is limited detent, note1 |
| BMA/SMP(E)-JFJ2G | 15.65max | 5.6 | 6.6 | SMP is limited detent, note1 |
Note1:interface depth is 2.79mm
Related Products
1.
| Mode No. | Description |
| BNC/SMA-KK | BNC male to SMA male adapter |
2.
| Model No. | Description |
| K/SMP-KFK5 | K female to SMP female adapter |
3.
| Model No. | Description |
| SMA/BMA-KFK11 | SMA Female to BMA female adapter |
4.
| Model No. | Description |
| K/SMP-KFK2G | stainless steel |
5.
| Model No. | L1 | L2 | L3 | D1 | D2 | Note |
| SMA/SMP-KFK14 | 2.9 | 9.3 | 6 | 12.8 | 2.2 | |
| SMA/SMP-KFK26 | 2.8 | 8.6 | 6 | 11.8 | 1.9 | |
| SMA/SMP-KFK29 | 2.9 | 9.4 | 5.5 | 13.8 | 2.2 |
Application:
| Network | Satcom |
| Computer/LANs | Computer/LANs |
| Mobile communication | Instrumentation |
| Base Station | Mobile communication |
| Outdoor facilities | Radar,microwave |
| Telecommunications | Instrumentation |
| Automotive | Jump line join |
| Basic facility | Radio, TV aerial system |
Workshop & Exibition
NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
