Flange Mount 2.92mm Female to SMP Female RF Adapter
Stainless steel Flange Mount 2.92mm Female to SMP Female RF Coax Adapter
SMP is a miniature push-on RF coaxial connector adapter, which has the characters of small volume, light weight, excellent seismic performance, and widely working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz) and the plug has three interface form with full detent, limited detent and smooth bore (including with braking). Various interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of broad to broad connec tors.
K series(2.92 type) connector, this series product is a common used millimeter wave connector, the frequency is 40GHz, it can mate and interchange with SMA series, K series connectors. It has the advantages of small volume, light weight, high use frequency, reliable connect.

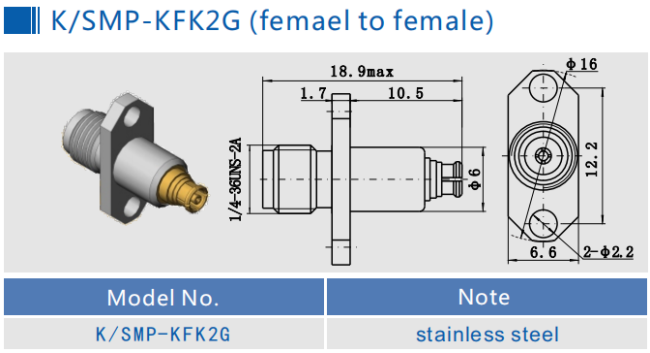

Outline Drawing and Picture(mm)
Related Products
1.
| Mode No. | Description |
| BNC/SMA-KK | BNC male to SMA male adapter |
2.
| Model No. | Description |
| K/SMP-KFK5 | K female to SMP female adapter |
3.
| Model No. | Description |
| SMA/BMA-KFK11 | SMA Female to BMA female adapter |
4.
| Model No. | Description |
| K/SMP-KFK2G | stainless steel |
5.
| Model No. | L1 | L2 | L3 | D1 | D2 | Note |
| SMA/SMP-KFK14 | 2.9 | 9.3 | 6 | 12.8 | 2.2 | |
| SMA/SMP-KFK26 | 2.8 | 8.6 | 6 | 11.8 | 1.9 | |
| SMA/SMP-KFK29 | 2.9 | 9.4 | 5.5 | 13.8 | 2.2 |
Application:
| Network | Satcom |
| Computer/LANs | Computer/LANs |
| Mobile communication | Instrumentation |
| Base Station | Mobile communication |
| Outdoor facilities | Radar,microwave |
| Telecommunications | Instrumentation |
| Automotive | Jump line join |
| Basic facility | Radio, TV aerial system |
Workshop & Exibition
NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
