RF Straight Coaxial Connector BNC Female to SMA Male Adapter

BNC series RF Electronic connector is a snap-in radio frequency coaxial connector developed and produced according to MIL-C-39012. It has the characteristics of fast connection and reliable contact. It is mostly used in radio frequency systems with frequencies below 4GHz, and is widely used in network systems, instrumentation and computer interconnection fields.

SMA connectors are small, high frequency RF coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20GHz.

As manufacturer, we can customize BNC SMA connectors and adapters as per your different requirement. Orientations in straight and right angle, with 2-hole or 4-hole flange or threaded bulkhead, hermetic and waterproof types are all available upon request.

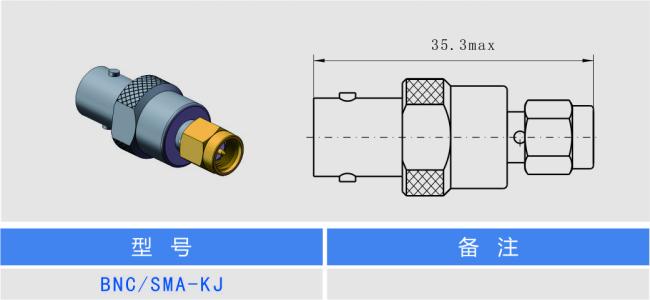

Outline Drawing and Picture(mm)

Other SMA Male Female to D4/SMP/MCX Male Female RF Adapter

1.

2.

3.

4.

5.

6.

Application:

Workshop & Exibition

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
