High Quality Gold Plated SSMA Male to SMB Female RF Adapter
High Quality Gold Plated SSMA Male to SMB Female RF Adapter
Connector A:
SMB connector is a kind of a miniature push-on insertion stop RF coaxial connector with characteristics of small volume, light weight, excellent easy use and high reliability etc, suitable for radio equipment and high-frequency circuits of electronic equipment.
Connector B:
SSMA series RF coaxial connectors are miniaturized products of SMA connectors, which have the characteristics of small size, wide frequency bandwidth and high reliability. It is widely used in microwave communications and other fields.
As manufacturer, we can customize SMB SSMA connectors and adapters as per your different requirement. Orientations in straight and right angle, with 2-hole or 4-hole flange or threaded bulkhead, hermetic and waterproof types are all available upon request.
Specifiacation:
| Interface according to | IEC60169-15 |
| Impedance | 50Ω |
| Freqency Range | DC to 18GHz |
| Insertion Loss | ≤0.30dB |
| VSWR | ≤1.2(DC-6GHz) |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
| Dielectric | PTFE |

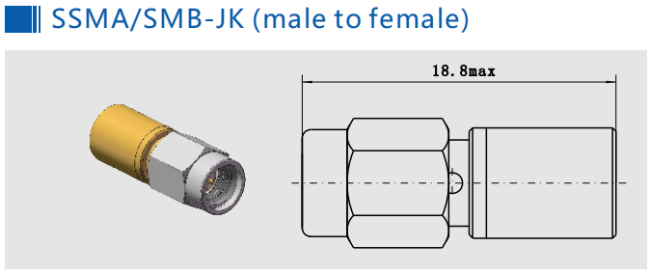

Detailed Drawing:
Application:
- Wireless
- Antennas
- Broadband
- Instrumentation
- Phased array antennas
- Board-to-board interconnect
Product Cataloge:
| RF Adapter |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Cable Assemblies |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Related Products
1.SMA male to male RF Connector
2.SMA female to female flange mount RF Connector
3.Hermetically SMA female to female RF Connector
4.Quick Insert SMA Male to SMA Female RF Connector
NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your details.
