High Reliable Rohs SMA Right Angle Male to Male RF Adapter Connector
SMA Right Angle Male to Male RF Adapter Connector
The SMA RF coaxial connector is a small, high frequency coaxial connector. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20 Ghz.
As manufacturer, we can customize SMA connectors and adapters as per your different requirement. Orientations in straight and right angle, with 2-hole or 4-hole flange or threaded bulkhead, hermetic and waterproof types are all available upon request.Please click and download attached Catalog SMA RF Adapter.pdf.
Electrical Characteristics of SMA RF Adapter
| Impedance | 50 Ω |
| Frequency Range | 0.04GHz- 18 GHz |
| Voltage Rating | 335VRMS (Max. Sea Level) |
| Dielectric Withstand Voltage | 1000 VRMS (Max. Sea Level) |
|
VSWR (Voltage Standing Wave Ratio) |
≤ 1.35 |
| Contact Resistance |
Center Conductor ≤ 3.0 mΩ Outer Conductor ≤ 2.0 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |

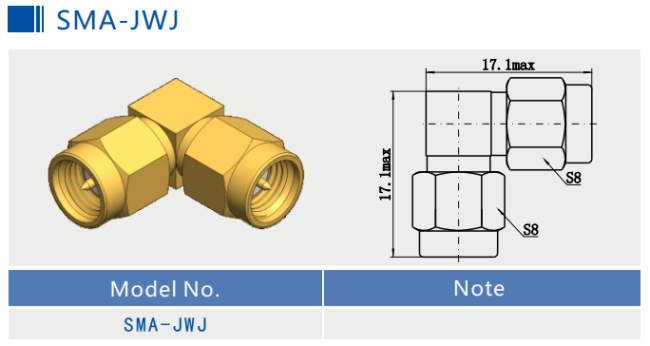

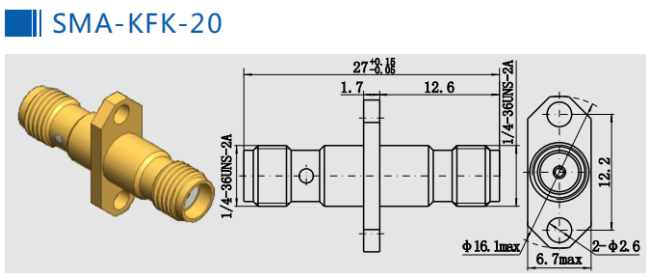

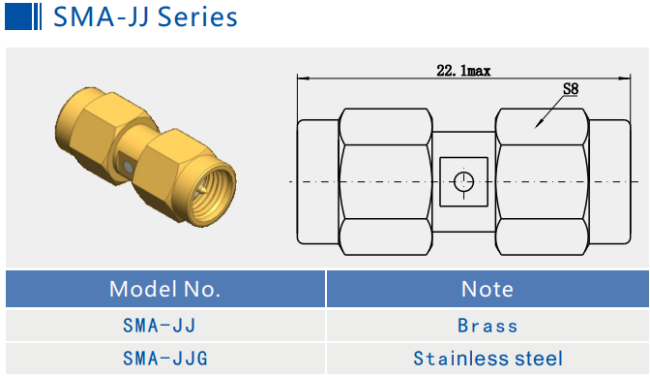

Outline Drawing and Picture(mm)
Other SMA Male Female to SMA In-series Male Female RF Adapter
|
Part Number
|
Description
|
|
SMA-KJK
|
SMA female to male to female adapter
|
|
SMA-KFK20
|
SMA male to male adapter
|
|
SMA-JWK1C
|
RA SMA male to female adapter
|
|
SMA-JJ Series
|
SMA male to male adapter
|
|
SMA-KK2 |
SMA male to male adapter
|
|
SMA-KYFK
|
SMA female to female bulkhead adapter
|
1.
2.
3.
4.
5.
6.
Application:
| Network | Satcom |
| Computer/LANs | Computer/LANs |
| Mobile communication | Instrumentation |
| Base Station | Mobile communication |
| Outdoor facilities | Radar,microwave |
| Telecommunications | Instrumentation |
| Automotive | Jump line join |
| Basic facility | Radio, TV aerial system |
Workshop & Exibition
NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
