RF Coaxial 40GHz 2.92mm Connector 2 Holes Flange Female Brass
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
Within 3 weeks
Brand:
ELT
Product Description
RF Coaxial 40GHz 2.92mm Connector 2 Holes Flange Female Brass
K type is also called 2.92 type connector, this series of products is a commonly used millimeter wave connectors, with a frequency of up to 40 GHz, can be used with SMA series and 3.5 series products are interchangeable and adopt air interface. With small size, light weight, high frequency of use, reliable connection, etc.
| Model Number | Description |

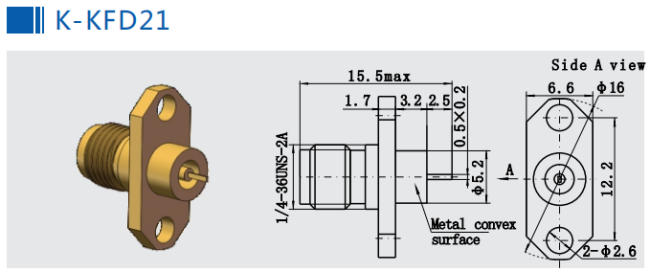

| K-KFD21 | 2-holes flange K 2.92mm female RF connector |
Specification:
| Impedance | 50 Ω |
| Frequency Range | DC - 40GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
| Voltage Standing Wave Ratio VSWR |
≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: BeCu, Gold Plated | |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated Stainless Steel, Passivated |
| Insulator | PEI |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Features:
- It can mate and interchange with SMA series, K series ,2.4mm,3.5mm connectors.
- Superior electrical performance up to 40GHz
- It have the advantages of small volume, light weight, high use frequency, reliable connect.
- Great for applications that require high frequency transmission
- Connector mating interface per MIL-STD-348
- Female contacts have unique three-slot construction
- An air dielectric with a loss-loss plastic center conductor support.
- It has the high use frequency, reliable connect.
Other 2.92mm Male Female RF Connector
|
Part Number
|
Description
|
|
K-KFD38
|
2.92mm Type K Female RF Coaxial Connector
|
|
K-KFD76G
|
Stainless steel 2.92mm Type K Female RF Coaxial Connector
|
|
K-KFD8
|
2.92mm Type K Female RF Coaxial Connector
|
|
K-JFD9G |
Stainless steel 2.92mm Type K Male RF Coaxial Connector
|
1.
2.
3.
4.
Application:
| Network | Satcom |
| Computer/LANs | Computer/LANs |
| Mobile communication | Instrumentation |
| Base Station | Mobile communication |
| Outdoor facilities | Radar,microwave |
| Telecommunications | Instrumentation |
| Automotive | Jump line join |
| Basic facility | Radio, TV aerial system |
