K type is also called 2.92 type connector, this series of products is a Commonly used millimeter wave connectors, with a frequency of up to 40 GHz, can be used with SMA series and 3.5 series products are interchangeable and adopt air interface.With small size, light weight, high frequency of use, reliable connection, etc.
Features of 2.92mm Straight Female 4 Holes Flange Connectors DC To 40GHz(mm):
- Female contacts have unique three-slot construction
- It can mate and interchange with SMA series, K series ,2.4mm,3.5mm connectors.
- Superior electrical performance up to 40 GHz
- It have the advantages of small volume, light weight, high use frequency, reliable connect.
- Great for applications that require high frequency transmission
- Connector mating interface per MIL-STD-348
- An air dielectric with a loss-loss plastic center conductor support.
- It have the high use frequency, reliable connect.
Specification of 2.92mm Straight Female 4 Holes Flange Connectors DC To 40GHz(mm):
| Impedance | 50 Ω |
| Frequency Range | DC - 40 GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
| Voltage Standing Wave Ratio VSWR |
≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: BeCu, Gold Plated | |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated Stainless Steel, Passivated |
| Insulator | PEI |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Outline Drawing of 2.92mm Straight Female 4 Holes Flange Connectors DC To 40GHz:(mm)
| Model Number | Description |
| K-KFD14 | 2.92mm female 4 holes flange rf connector |
| K-KFD14AG | 2.92mm female 4 holes flange rf connector stainless steel |
Other 2.92mm Male Female RF Connector
|
Part Number
|
Description
|
|

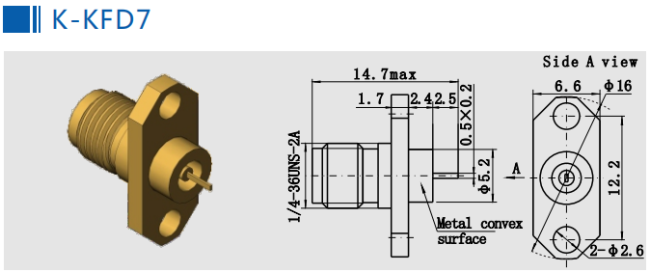

K-KFD7
|
2.92mm Type K Female RF Coaxial Connector
|
|

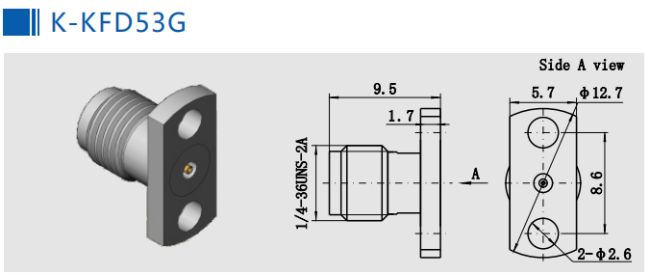

K-KFD53G
|
Stainless steel 2.92mm Type K Female RF Coaxial Connector
|
|
K-KFD29
|
2.92mm Type K Female RF Coaxial Connector
|
|
K-JFD9G |
Stainless steel 2.92mm Type K Male RF Coaxial Connector
|
1.
2.
3.
4.
Application:
| Network | Satcom |
| Computer/LANs | Computer/LANs |
| Mobile communication | Instrumentation |
| Base Station | Mobile communication |
| Outdoor facilities | Radar,microwave |
| Telecommunications | Instrumentation |
| Automotive | Jump line join |
| Basic facility | Radio, TV aerial system |
NOTE:
We have over 10,000 types of RF Adapter/Connector, if the connector you are using is not found, please contact us with your details.
