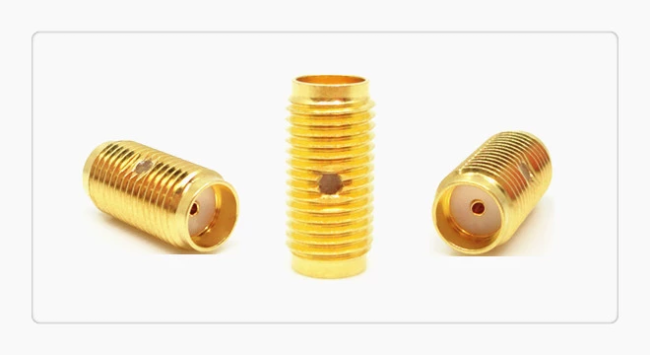

High Reliable RF Coaxial SMA Female to Female Adapter
SMA Female to Female RF Coaxial Connector Adaptor
High Performance SMA RF Connectors:
1. SMA RF connectors are available in quick connect, push-on or standard interface, straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz (Our SMA RF connectors can be 20GHz).
Electrical Characteristics:
| Impedance | 50Ω | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 335VRMS* | |
| Dielectrics Voltage-resistance | 1000VRMS* | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ | |
| VSWR | ≤1.3 | |
Material & Mechanical Characteristics:
| Center Conductor | Male | Brass Gold plated | ||||
| Female | Sn-P Bronze Gold plated | |||||
| Elastic Contact | Beryllium bronze Nickel plated | |||||
| Shell and other Metal Parts | Brass Nickel plated | |||||
| Stainless Passivation | ||||||
| Crimping Sleeve | Brass Nickel plated | |||||
| Tightening torque of connection | 0.79－1.13N .m | |||||
| Durability | 500 cycles | |||||
| Sealing Ring | Silicone Rubber | |||||
| Insulators | PTFE | |||||

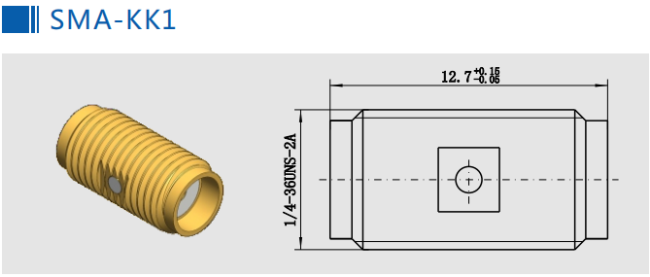

More Detail of
SMA Female to Female RF Coaxial Connector Adaptor :
(Unit:mm)
Applicable Standard:
IEC 60169-15
Our Advantange:
20+ years experience on RF & Microwave Components
Qualified components supplier of China
Rich cooperation experience with national high tech projects
High performance and commercial grade components for choice
Strict quality (QA Report),ISO9001,ROHS,CE,UL
Factory area 35,000 sq.m with almost 1,000 experience staff
500+ national patents with 15 production lines
Annual output value above US$300 million
50+ series products with 100,000 types
Short delivery and competitive price
Custom-made(ODM) orders are welcomed
Applications:
- Microwave Systems
- Telecommunications
- 5G Solutions
- Measurement Systems
- Mobile Telephone WiFi Antennas Systems
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
