Flange Mount Male Antenna 2 Holes SMA RF Connector
2 holes Flange Mount Right Angle Antenna Connector SMA Male
High Performance SMA RF Connectors:
1. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz).
Our Advantange:
- 20 years experience on RF & Microwave Components
- Qualified components supplier
- Rich cooperation experience with national high tech projects
- High quality and commercial grade components for choice
- Strict quality (QA Report),ISO9001,ROHS,CE,UL
- Factory area 35,000 sq.m with almost 1,000 experience staff
- 500+ national patents with 15 production lines
- Annual output value above US$300 million
- 50+ series products with 100,000 types
- Short delivery and competitive price
- Custom-made(ODM) orders are welcomed
Electrical Characteristics:
| Impedance | 50Ω | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 335VRMS* | |
| Dielectrics Voltage-resistance | 1000VRMS* | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ | |
| VSWR | ≤1.3 | |
Material & Mechanical Characteristics:
| Center Conductor | Male | Brass Gold plated | ||||
| Female | Sn-P Bronze Gold plated | |||||
| Elastic Contact | Beryllium bronze Nickel plated | |||||
| Shell and other Metal Parts | Brass Nickel plated | |||||
| Stainless Passivation | ||||||
| Crimping Sleeve | Brass Nickel plated | |||||
| Tightening torque of connection | 0.79－1.13N .m | |||||
| Durability | 500 cycles | |||||
| Sealing Ring | Silicone Rubber | |||||
| Insulators | PTFE | |||||

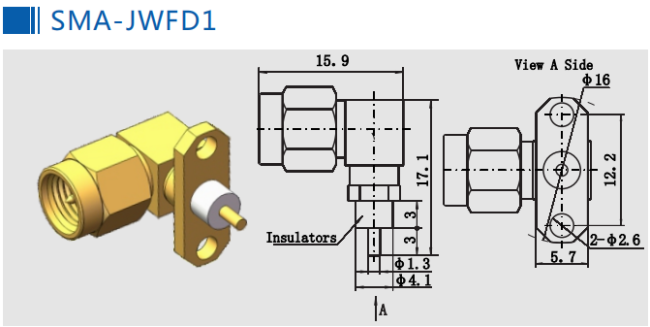

More Detail of
2 holes Flange Mount Right Angle Antenna Connector SMA Male :
(Unit:mm)
Applications:
- Microwave Systems Telecommunications
- 5G Solutions
- Measurement Systems
- Mobile Telephone WiFi Antennas Systems
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
