2 Holes Flange Mount Straight 50Ohm SMA Female Connector
2 Holes Flange Mount 50Ohm Straight SMA Female Connector
High Performance SMA RF Connectors:
-
SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.
-
SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
-
SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
-
SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz (Our SMA RF connectors can be 20GHz).

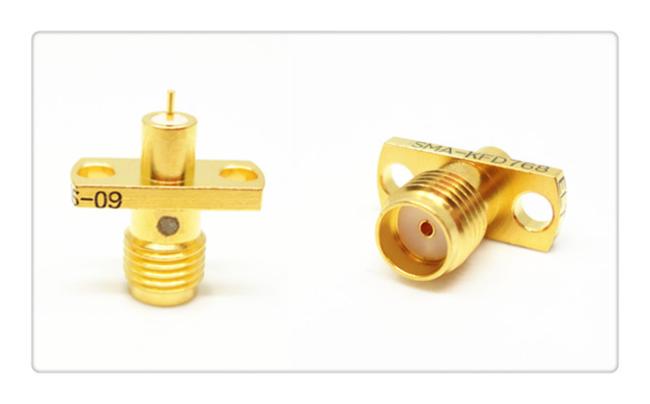

Product Display of SMA Connector:
Our Advantange:
-
Qualified components supplier of China
-
23 years experience on RF & Microwave Components
-
Rich cooperation experience with national high tech projects
-
High performance and commercial grade components for choice
-
Strict quality (QA Report),ISO9001,ROHS,CE,UL
-
Factory area 35,000 sq.m with almost 1,000 experience staff
-
500+ national patents with 15 production lines
-
Annual output value above US$300 million
-
50+ series products with 100,000 types
-
Short delivery and competitive price
-
Custom-made(ODM) orders are welcomed
Electrical Characteristics:
| Impedance | 50Ω | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 335VRMS* | |
| Dielectrics Voltage-resistance | 1000VRMS* | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ | |
| VSWR | ≤1.3 | |
Material & Mechanical Characteristics:
| Center Conductor | Male | Brass Gold plated | ||||
| Female | Sn-P Bronze Gold plated | |||||
| Elastic Contact | Beryllium bronze Nickel plated | |||||
| Shell and other Metal Parts | Brass Nickel plated | |||||
| Stainless Passivation | ||||||
| Crimping Sleeve | Brass Nickel plated | |||||
| Tightening torque of connection | 0.79－1.13N .m | |||||
| Durability | 500 cycles | |||||
| Sealing Ring | Silicone Rubber | |||||
| Insulators | PTFE | |||||
Applicable Standard:
-
IEC 60169-15

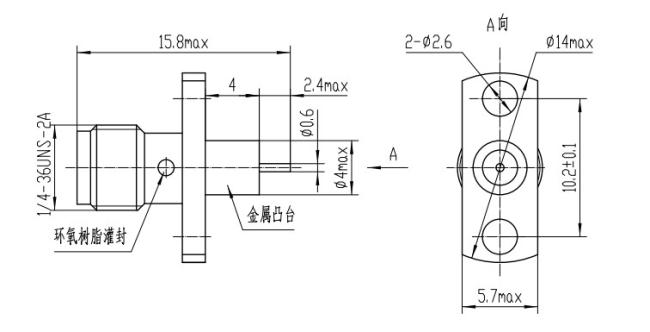

More Details of 2 Holes Flange Mount 50Ohm Straight SMA Female Connector :(Unit:mm)
Applications:
-
Microwave Systems
-
Telecommunications
-
5G Solutions
-
Measurement Systems
-
Mobile Telephone WiFi Antennas Systems
Our products contains:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
With high quality and reasonable price we warmly welcome your business cooperation.
