50Ohm ROHS Gold Plating Flange Mount Male SMP RF Connector
50Ohm ROHS Gold Plating Flange Mount SMP Male Connector
SMP RF Connector Introduction
The SMP interface is a subminiature interface in the same scale as MMCX connectors but offers a freqquency range of DC to 40 GHz. The SMP interconnect series relies on floating female-to-female adapters (commonly called bullets) to achieve stacking of boards equipped with SMP male PCB connectors. This durable structure and ability to withstand radial and axial misalignment allows blind interconnection solutions. It is commonly used in miniaturized high frequency coaxial modules.
Features and Benefits
- Industry standard per MIL-STD-348
- Frequency Range: DC - 40 GHz
- Gold plated & passivated stainless steel
- Push-on or snap coupling
- Male and Female, Straight and Right Angle choice
- Normal type and hermetic seals Flange mount & Thread-In Mount choice
- The plug has three interface form-full detent, limited detent and smooth bore(including with braking).
- Custom connectors available
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |

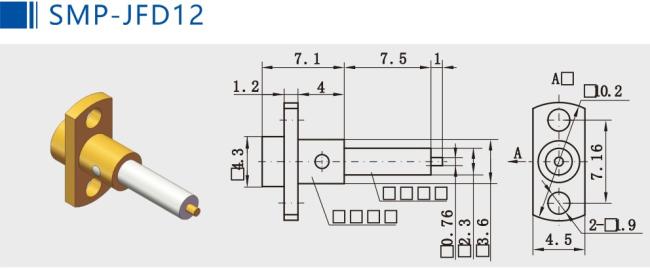

Detailed Drawing of 50Ohm ROHS Gold Plating Flange Mount SMP Male Connector:
Model Number | Note |
SMP-JFD12 | Limited Detent |
Applications
- Antennas
- Board-to-board interconnect
- Telecommunications
- Instrumentation
Product Cataloge:
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| N Type RF Connector |
| TNC RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of SMP connector, If you don’t see the cable assembly you requirewe can design and manufacture one to meet your unique specifications!
