High-Strength Stainless Steel SMP Male 2-Hole Flange RF Connector with Smooth Bore Plug
High-Strength Stainless Steel SMP Male 2-Hole Flange RF Connector with Smooth Bore Plug
SMP RF Connector Introduction
The SMP interface is a small-sized connector that matches the size of MMCX connectors, but it offers a wider frequency range of DC to 40 Ghz. The SMP interconnect series employs floating female-to-female adapters (commonly referred to as bullets) for stacking boards with SMP male PCB connectors. This robust structure and ability to tolerate misalignment in both radial and axial directions enable blind interconnection solutions. It is commonly utilized in compact high-frequency coaxial modules.
Features and Benefits
- The characteristic impedance is 50Ω.
- The frequency range can be from DC to 40GHz.
- The operating voltage is 335VRMS at sea level.
- The withstand voltage can reach 500VRMS at sea level.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |

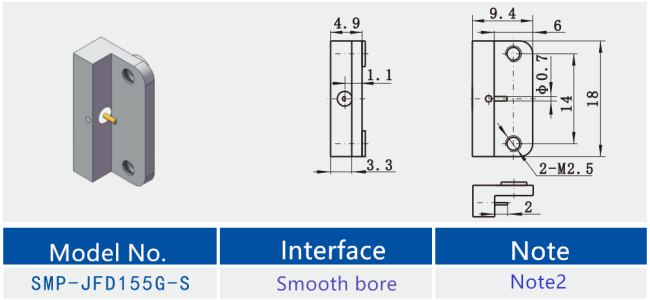

Detailed Drawing of
High-Strength Stainless Steel SMP Male 2-Hole Flange RF Connector with Smooth Bore Plug :
Applications
- In military and aerospace fields, SMP video connectors can be used to connect various high-frequency coaxial modules and components.
- SMP video connectors can also be applied in testing and measurement fields, such as microwave device testing and RF signal analysis.
- In medical and industrial fields, SMP video connectors can be used to connect various sensors and instruments for high-precision data acquisition and processing.
- SMP video connectors can also be used in communication equipment, such as fiber optic communications and satellite communications, to transmit high-speed data signals.
Product Cataloge:
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| N Type RF Connector |
| TNC RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
