SMA Type Hermetically Sealed Female RF Connector
SMA Type Hermetically Sealed Female RF Connector with Microstrip for Antenna Automotive
SMA is a kind of RF coaxial connectors that is widely applied, with small sized thread coupling. Characteristic impedance is 50Ohm. The characteristic of connectors is in wide frequency range, excellent performance, high reliability. They are used in connection with RF cable or microstrip line in RF circuit of the WLAN system, controlled program, microwave equipment and the digital communication system.The frequency can be up to 18GHz by using semi-rigid or semi-flex cable.
Specifiacation of SMA Type Hermetically Sealed Female RF Connector with Microstrip for Antenna Automotive(mm)
| Interface according to | IEC60169-15 |
| Impedance | 50Ω |
| Freqency Range | DC to 18GHz |
| Insertion Loss | ≤0.30dB |
| VSWR | ≤1.2(DC-6GHz) |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
|
Insulation Dielectric |
PTFE |

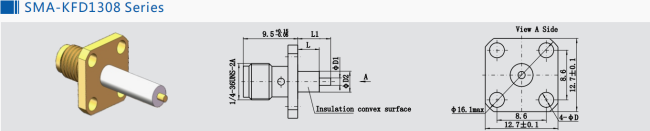

Detailed Drawing of SMA Type Hermetically Sealed Female RF Connector with Microstrip for Antenna Automotive(mm)
| Model Number | L | L1 | L2 | D | D1 | D2 | Description |
| SMA(M)-KFD14 | 6 | 1.8 | 15(+0.15;-0.05) | 0.6 | 6 | 2.6 | Hermetically sealed SMA female 2-hole flange rf connector |
| SMA(M)-KFD15 | 8 | 3 | 17.5(+0.10;-0.05) | 0.7 | 5 | 2.6 | |
| SMA-KFD19 | 4 | 2 | 13.5(+0.15;-0.05) | 1.3 | 6 | 2.6 | SMA female 2-hole flange rf connector |
There also have other SMA RF Connectors(mm):
1.
| Model Number | L | L1 | Description |
| SMA-KFD553 | 1.5 | 4 | SMA Female 4-hole flange mount rf connecor |
| SMA-KFD666 | 5.4 | 6.9 | |
| SMA-KFD850 | 6 | 8.5 |
2.
| Model Number | L | L1 | D | D1 | D2 | Description |
| SMA-KFD1308 | 11.7 | 13.7 | 2.6 | 1.3 | 4.1 | SMA female 4-hole flange rf connector |
| SMA-KFD1318 | 7 | 17 | 2.6 | 1.3 | 4.1 | |
| SMA-KFD1367 | 5 | 11 | 2.6 | 1.3 | 4.1 | |
| SMA-KFD1393 | 8.4 | 9.4 | 2.6 | 1.3 | 4.1 | |
| SMA(S)-KFD1414 | 23.9 | 27 | 2.6 | 1.3 | 4.1 | Waterproof SMA female 4-hole flange mount rf connector |
3.
| Model Number | L | L1 | D | D1 | Description |
| SMA-KFD90 | 3.2 | 2.5 |
0.65 flat
|
6 | SMA female 4-hole flange rf connector |
| SMA-KFD126 | 4 | 2.5 |
0.65 flat
|
6 | |
| SMA-KFD129 | 4 | 2 |
0.65 flat
|
6 | |
| SMA-KFD870 | 3 | 5 |
0.65 flat
|
6 |
Application of SMA Type Hermetically Sealed Female RF Connector with Microstrip for Antenna Automotive(mm)
- Wireless
- Antennas
- Broadband
- Instrumentation
- Phased array antennas
- Board-to-board interconnect
NOTE:
We have over 10,000 types of SMA RF Connector/Adapter, if the connector you are using is not found, please contact us with your details.
