Stainless Steel 1.85 Mm Female RF Connector Straight
Price:
Negotiable
MOQ:
20pcs
Delivery Time:
Within 3 weeks
Brand:
ELT
Product Description
Stainless Steel 1.85 mm Female Straight RF Connector
1.85mm connector is a high performance millimeter wave connector.Its usage frequency can up to 67 Ghz. Using air interface and threaded connection, it can be interchanged with 2.4mm connector. It has the advantages of small size, light weight, high frequency of use and reliable connection. It is commonly used in high frequency microwave measurement and millimeter wave devices.
Specification:
|
Electronic and Material Characterials |
||
| Impedance | 50Ohm | |
| Frequency Range | DC~67GHz | |
| Rated Voltage | 170 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 500 VRMS (Maximum sea-level) | |
| VSWR | ≤1.3 | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male |
Beryllium bronze gold plated |
| Female | Beryllium bronze gold plated | |
| Shell and other metal parts |
Brass /stainless Stain gold plated /passivated |
|
| Insulator | PEI/PLF | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79 -1.13 N.m | |

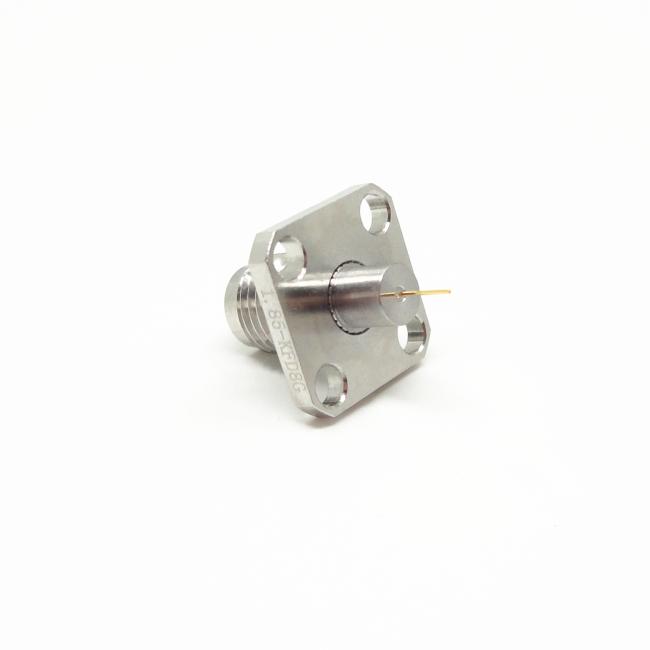

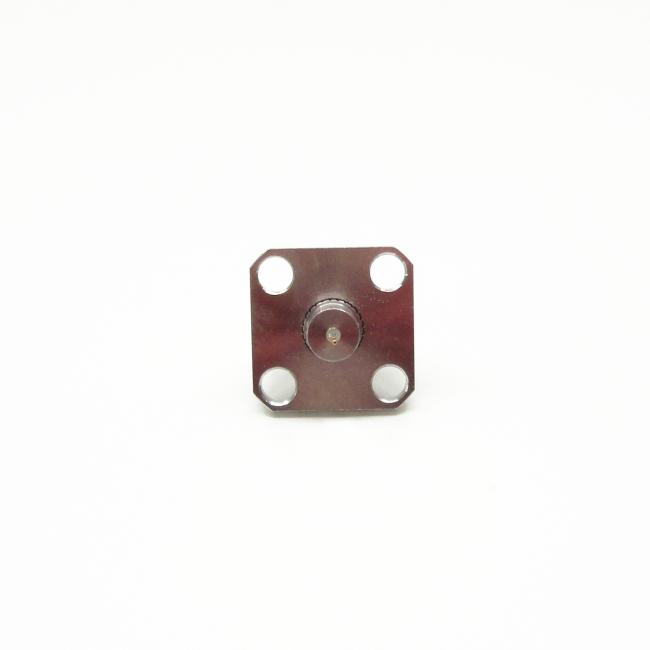

More Pictures of Stainless Steel 1.85 mm Female Straight RF Connector:
Application:
| Network | Satcom |
| Computer/LANs | Computer/LANs |
| Mobile communication | Instrumentation |
| Base Station | Mobile communication |
| Outdoor facilities | Radar,microwave |
| Telecommunications | Instrumentation |
| Automotive | Jump line join |
| Basic facility | Radio, TV aerial system |
