Stainless Steel SMP Male Connector Thread-In Mount Straight Terminal RF Connector
Stainless Steel SMP Male Connector Thread-In Mount Straight Terminal RF Connector
SMP RF Connector Introduction
SMP is a miniature push-on RF coaxial connector,which has the characters of small volume,light weight,excellent seismic performance,and widely working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz),and the plug has three interface form with full detent, limited detent and unthreaded hole(including with braking).Various interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of broad to broad connec tors. Apply for the install situation with the requirement of high reliability modular intensive.
Specification
| Electrical Characteristics | ||||
| Impedance | 50Ω | |||
| Frequency Range | DC~40GHz | |||
| Rated Voltage | 170VRMS | |||
| Dielectrics Voltage-resistance |
500VRMS
|
|||
| Insulation Resistance |
≥2000MΩ
|
|||
|
|
Outer conductor | ≤4mΩ | ||
| Center conductor | ≤26mΩ | |||
|
|
DC~18GHz | 18~26.5GHz | 26.5~40GHz | |
| Straight Connector | ≤1.25 | ≤1.3 | ≤1.5 | |
| Angle Connector | ≤1.3 | |||
| Adapter | ≤1.2 | ≤1.3 | ≤1.5 | |
| Other | ≤1.3 | |||

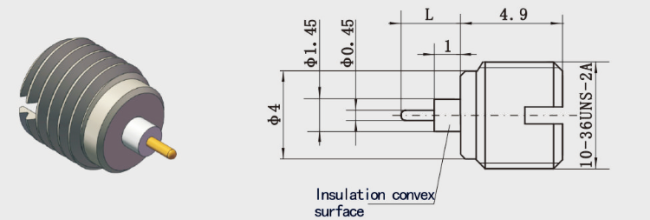

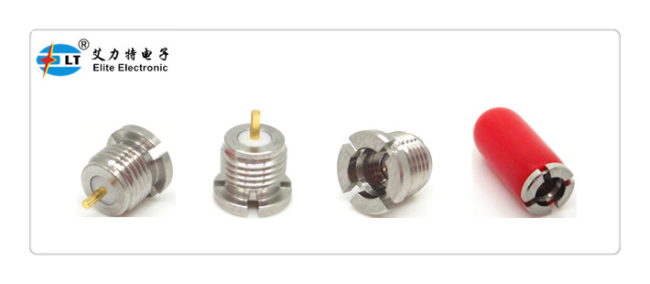

Detailed Drawing of Stainless Steel SMP Male Connector Thread-In Mount Straight Terminal RF Connector:
|
Features and Benefits
| DC to 40 GHz |
| Sub-miniature |
| Gold plated |
| Compact size |
| Male& Female, Straight & Right Angle choice |
| Push-on or snap coupling |
| PCB & cable mount connectors |
| Full detent, Limited detent and Smooth bore |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |
| Cable mount versions for both flexible and semi-rigid cable Materials |
Applications
- Antennas
- Broadband
- Instrumentation
- Aerospace
- Military
- Instrumentation
- Broadband
- Board-to-board interconnect
- Phased array antennas
Product Cataloge:
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| N Type RF Connector |
| TNC RF Connector |
| MCX/MMCX RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
