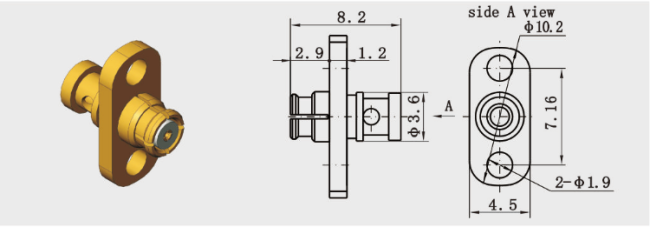

Hermetically Sealed Male SMP Coaxial Connector Solder Mount
Hermetically Sealed Solder Mount SMP Male Coaxial Connectors
SMP is a subminiature push-on(snap coupling) RF coaxial connector,which has the characters of small volume, light weight, excellent seismic performance,and widely working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz),and the plug has three interface form-full detent, limited detent and smooth bore(including with braking).PCB mount, cable mount and in-series adaptors provide an interconnect solution for board-to-board, blind mate and rack-and-panel applications while maintaining package density.Apply for the install situation with the requirement of high reliability modular intensive.
- DC to 40 GHz
- Sub-miniature
- Gold plated
- Compact size
- Push-on or snap coupling
- PCB & cable mount connectors
- Full detent, Limited detent and Smooth bore
- Male& Female, Straight & Right Angle choice
- Normal type and hermetic, Flange mount & Thread-In Mount choice
- Cable mount versions for both flexible and semi-rigid cable Materials
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~40GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤3.5mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤8mΩ, Sealing≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
| Material & Mechanical Characteristics | |||||
| Center Conductor | Male | Sn-P Bronze/Kovar, Gold plated | |||
| Female | Beryllium bronze, Gold plated | ||||
| Elastic Contact | Beryllium bronze Gold plated | ||||
| Shell and other Metal Parts |
Brass/Kovar Gold plated Stainless steel Passivation |
||||
| Insulators | Glass sintering/PTFE/PEI | ||||
| Hermetic Product Leakage Rate | ≤1.01325×10-3Pa·cm3/s | ||||
Application:
* Satcom
* Network
* Computer/LANs
* Base Station
* Outdoor facilities
* Instrumentation
* Automotive
* Jump line join
* Basic facility
* Radar,microwave
* Telecommunications
* Mobile communication
* Radio, TV aerial system
Product Cataloge:
| RF Adapter |
| Waveguide To Coaxial Adapter |
| TNC RF Connector |
| N Type RF Connector |
| Microwave Rotary Joints |
| RF Cable Assemblies |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| J30J Series Connector |
| Glass-to-metal Hermetic Seals |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging Details:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
