50GHz Jack Straight 2.4mm RF Connector Female Millimeter Wave Connector
50GHz Jack Straight 2.4mm RF Connector Female Millimeter Wave Connector
2.4 Type product is a high performance millimeter wave connector, the frequency is 50GHz, use air interface threaded connect, with characteristics of small volume, light weight, high use frequency, reliable connect, it is widely used in high frequency microwave measurement and millimeter wave devices.
The high precision 50Ohm coaxial 2.4mm connectors for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.
Specification of 50GHz Jack Straight 2.4mm RF Connector Female Millimeter Wave Connector(mm):
| Impedance | 50Ω |
| Frequency Range | DC - 50GHz |
| Voltage Rating | 170 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 500 VRMS (Max. Sea Level) |
Voltage Standing Wave Ratio | ≤ 1.05+0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: BeCu, Gold Plated | |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated |
| Insulator | PEI |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
| Insertion loss | <.04 sqrt(f(GHz)) dB |
| Temperature range | -65 ℃~+165 ℃ |

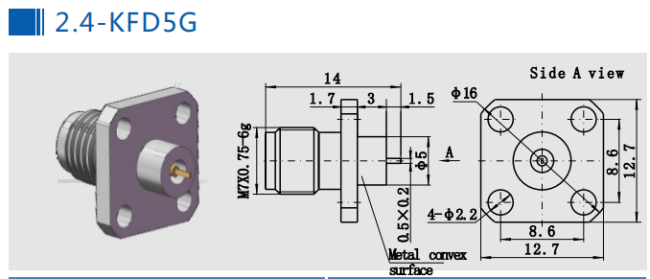

Outline Drawing of 50GHz Jack Straight 2.4mm RF Connector Female Millimeter Wave Connector(mm):
| Model No. | Description |
| 2.4-KFD5G | 2.4mm Female Jack RF Connector |
Features:
•2.4mm connector is a kind of precision microwave connectors. The frequency can be up to 50GHz.
•Stainless steel construction
•Superior electrical performance to 50GHz
•Connectors in End Launch and Flange options
•Adapters to 2.4mm, SMP, 2.92mm, SMA.
•Great for applications that require high frequency transmission
•Excellent reliability where extreme shock & vibration conditions are experienced
•Quick connect cable plugs and adapter
Application:
* Avionics, radars
* Navigation systems
* Missiles and guidance systems
* Telecommunication systems
* Instrumentation
* Automotive
* Satcom
* Computer/LANs
* Telecommunications
* Research centres
* Satellite communications
