RF Straight Coaxial Connector TNC Female to SMA Male Adapter

TNC series RF Electronic connector is a medium and small power connector with threaded connection mechanism developed and produced in accordance with the US standard MIL-C-39012. The interface size is similar to that of the BNC series. It has the characteristics of strong shock resistance, high reliability, excellent mechanical and electrical performance and the operating frequency reaches 11GHz.

SMA connectors are small, high frequency RF coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20GHz.

As manufacturer, we can customize TNC SMA connectors and adapters as per your different requirement. Orientations in straight and right angle, with 2-hole or 4-hole flange or threaded bulkhead, hermetic and waterproof types are all available upon request.

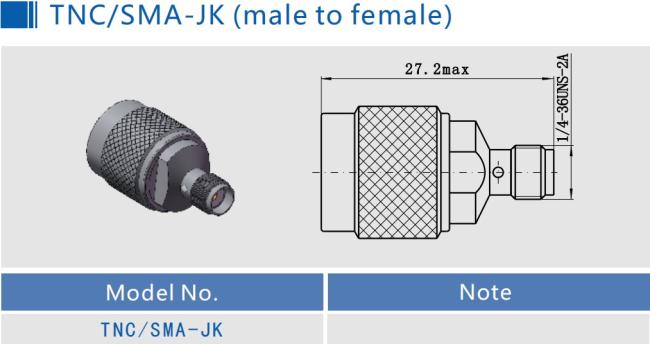

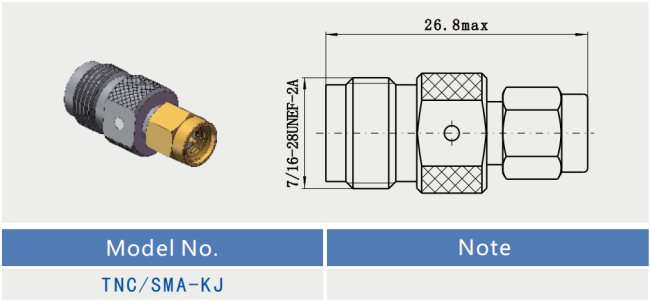

Outline Drawing and Picture(mm)

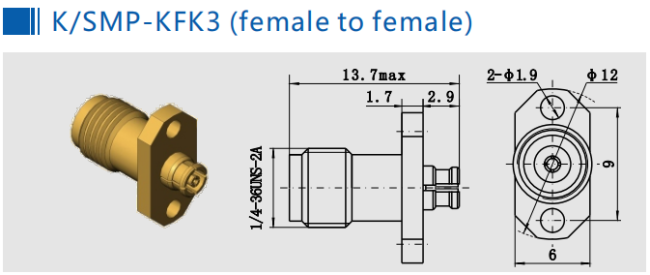

Other SMA Male Female to D4/SMP/MCX Male Female RF Adapter

1.

2.

3.

4.

5.

6.

Application:

Workshop & Exibition

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
