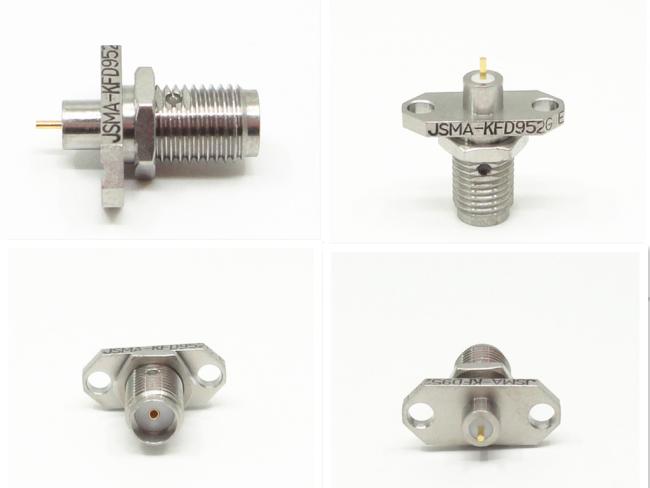

Passivated SUS SMA RF Connector Straight 2 Holes Flange Mount Female Connector
50Ω Passivated Stainless Steel SMA RF Connector DC 18GHz Frequency
1. SMA RF connector is high quality and quick combinations by simply screwing two connectors together with no soldering or crimping required.
2. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
3. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz (Our SMA RF connectors can be 20GHz).
4.SMA RF connectors are available in quick connect, push-on or standard interface, straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.
Specifiacation:
| Electronic and Material Characterials | ||
| Impedance | 50Ohm | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 335 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 1000VRMS (Maximum sea-level) | |
|
VSWR |
Straight | ≤1.3 |
| Right Angle | ≤1.35 | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male | Brass, Gold-plated |
| Female | Beryllium bronze, Gold plated | |
| Shell and other metal parts | Brass , Stainless steel, Gold-plated | |
| Contact Resistance | Inner conductor | ≤3.0MΩ |
| Outer conductor | ≤2.0MΩ | |
| Elastomer | Beryllium bronze ,Nickle plated | |
| Insulator | PTFE | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79-1.13 N.m | |
| Durablity | 500(Cysles) | |
