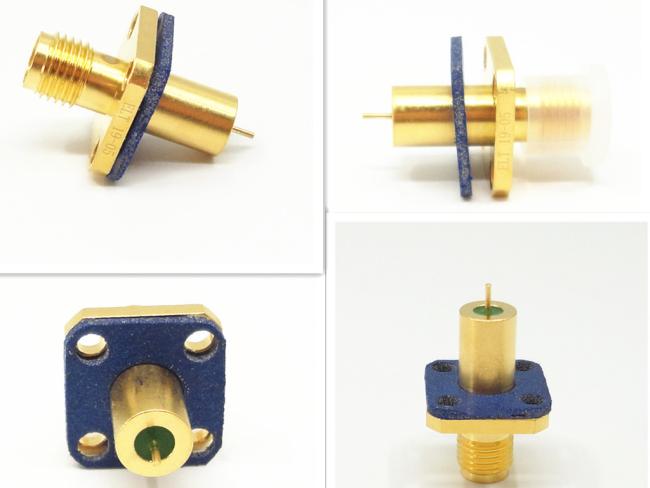

Hermetic Glass Insulator Feedthrough Seal SMA Female Connector Four Hole Mount
Hermetic Glass Insulator Feedthrough Seal SMA Female Connector Four Hole Mount
SMA series is a kinds of mini, high-frequency RF coaxial connector. With characteristics of small volume,good bandwidth,superior electrical characteristics.
SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.
Electronic and Material Characterials:
| Electronic and Material Characterials | ||
| Impedance | 50Ohm | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 335 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 1000VRMS (Maximum sea-level) | |
|
VSWR |
Straight | ≤1.3 |
| Right Angle | ≤1.35 | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male | Brass, Gold-plated |
| Female | Beryllium bronze, Gold plated | |
| Shell and other metal parts | Brass , Stainless steel, Gold-plated | |
| Contact Resistance | Inner conductor | ≤3.0MΩ |
| Outer conductor | ≤2.0MΩ | |
| Elastomer | Beryllium bronze ,Nickle plated | |
| Insulator | PTFE | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79-1.13 N.m | |
| Durablity | 500(Cysles) | |
Outline Drawing:
Related SMA RF Connector(mm):
1.
| Model Number | L | L1 | Description |
| SMA-KFD553 | 1.5 | 4 | SMA Female 4-hole flange mount rf connecor |
| SMA-KFD666 | 5.4 | 6.9 | |
| SMA-KFD850 | 6 | 8.5 |
2.
| Model Number | L | L1 | D | D1 | D2 | Description |
| SMA-KFD1308 | 11.7 | 13.7 | 2.6 | 1.3 | 4.1 | SMA female 4-hole flange rf connector |
| SMA-KFD1318 | 7 | 17 | 2.6 | 1.3 | 4.1 | |
| SMA-KFD1367 | 5 | 11 | 2.6 | 1.3 | 4.1 | |
| SMA-KFD1393 | 8.4 | 9.4 | 2.6 | 1.3 | 4.1 | |
| SMA(S)-KFD1414 | 23.9 | 27 | 2.6 | 1.3 | 4.1 | Waterproof SMA female 4-hole flange mount rf connector |
3.
| Model Number | L | L1 | D | D1 | Description |
| SMA-KFD90 | 3.2 | 2.5 |
0.65 flat
|
6 | SMA female 4-hole flange rf connector |
| SMA-KFD126 | 4 | 2.5 |
0.65 flat
|
6 | |
| SMA-KFD129 | 4 | 2 |
0.65 flat
|
6 | |
| SMA-KFD870 | 3 | 5 |
0.65 flat
|
6 |
Application:
*Aerospace
*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications
*Board-to-board interconnect
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
