SMP Male Straight Chamfer Pin Termination Microstrip RF Connector Hermetically Seal Limited Detent
SMP Male Limited Detent Hermetical Sealed Connector Attachment Microstrip Terminal
SMP is a small push in or snap in RF coaxial connector, which has the characteristics of small size, light weight, good seismic resistance, wide working frequency band, etc. Its operating frequency is up to 30GHz (our SMP connector products can reach 40GHz), and the plug has three types of interfaces: full clip, limit clip and optical hole (including band gate). PCB mounting, cable mounting, and serial adapters provide interconnection solutions for board to board, blind plug, and rack and panel applications while maintaining package density. It is suitable for installation with high reliability, modular and intensive requirements.
Specification of SMP RF Connector
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | ≤4mΩ |
| Center conductor | ≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
| Model No. | L | d | Interface | Note |
| SMP(M)-JHD | 1.6 | 0.39 | limited detent | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD-S | 1.6 | 0.39 | smooth bore | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD-F | 1.6 | 0.39 | full detent | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD-Y1 | 1.6 | 0.39 | limited detent |
interface deepth 1.7mm, hermetic, |
| SMP(M)-JHD26-S | 0.8 | 0.3 | smooth bore | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD42-S | 2 | 0.39 | smooth bore | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD51 | 1.2 | 0.39 | limited detent | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD51-S | 1.2 | 0.39 | smooth bore | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD54 | 1.1 | 0.39 | limited detent | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD54-S | 1.1 | 0.39 | smooth bore | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD63 | 2.5 | 0.39 | limited detent | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD153 | 1 | 0.39 | limited detent | interface deepth 1.7mm, hermetic |
Features and Benefits of SMP RF Connector
| Gold plated |
| Sub-miniature |
| DC to 40 GHz |
| Compact size |
| Push-on or snap coupling |
| Full detent, Limited detent and Smooth bore |
| PCB & cable mount connector |
| Male and Female, Straight and Right Angle choice |
| Cable mount versions for both flexible and semi-rigid cable Materials |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |

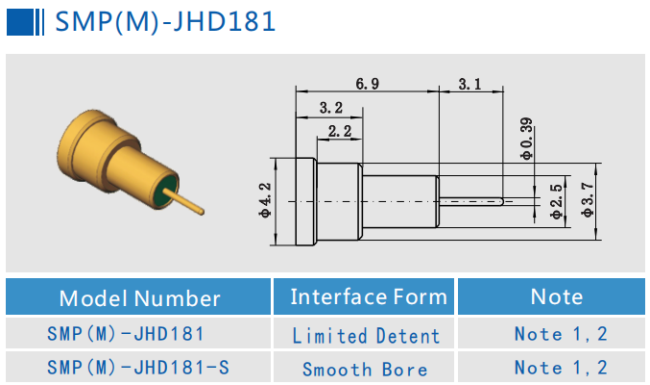

Detailed Drawing of SMP RF Connector
Applications of SMP RF Connector
-Army
-Antenna
-Broadband
-Telecommunications
-Instrumentation
-Phased array antenna
-Board to board interconnection
Features:
* Ability to withstand radial/axial misalignment
* Board-mount, field-replaceable, bullets, hermetic, and cable connector configurations
* Custom connectors available
