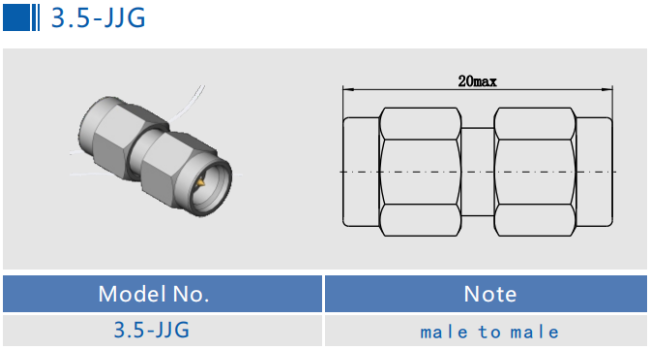

3.5mm Type Male To Male MMW Millimeter Wave Adapter Connectors
3.5mm to 3.5mm Type Male to Male (MMW)Millimeter Wave Adaptor Connectors
3.5 series is a common millimeter wave connector with a frequency of 33ghz (up to 36GHz). It adopts an air interface and can be interchanged with SMA series and K series connectors. It has the advantages of large bandwidth and high reliability. It is widely used in microwave measurement and millimeter wave equipment.
High precision 50 ohm coaxial 3.5mm adapter for general RF and microwave applications. These high-performance connectors are used in a variety of test and measurement settings from cellular to satellite communications to correctly match equipment and cable interconnections. The connector is made of durable stainless steel and is designed to withstand repeated use. They have air dielectric and loss plastic central conductor support.
Specification:
|
Electrical Characteristics
|
||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~50GHz
|
|||
|
Rated Voltage
|
250VRMS (Maximum sea-level)
|
|||
|
Dielectrics Voltage-resistance
|
750VRMS (Maximum sea-level)
|
|||
|
Insulation Resistance
|
≥5000MΩ
|
|||
|
|
Outer conductor
|
≤2mΩ
|
||
|
Center conductor
|
≤3mΩ
|
|||
|
VSMR
|
≤1.3
|
|||
More Pictures:
Application:
*Avionics, radar
*Navigation system
*Missiles and guidance systems
*Telecommunication system
*Instrumentation
*Automobile
*Satellite communication
*PC / LAN
*Telecommunications
*Research Center
*Satellite communication
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of MMW Adapter, if the connector you are using is not found, please contact us with your details.
