Hermetically Sealed SMPM RF Connector Male To Straight Termination
Hermetically Sealed SSMP Male to Straight Termination( SMPM hermetic seal)
SMPM is a miniature push in RF coaxial connector, which has the characteristics of small volume (compared with mini SMP), light weight and wide working bandwidth. It is applicable to the coupling use of board to board connectors in the case of modular dense installation. The plug has two interface forms: full pawl and non threaded hole.
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | ≤5mΩ | |||
| Center conductor | ≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
| Material & Mechanical Characteristics | |||||
| Center Conductor | Male | Kovar, Gold plated | |||
| Elastic Contact | Beryllium bronze Gold plated | ||||
| Shell and other Metal Parts |
Kovar Gold plated |
||||
| Insulators | Glass sintering | ||||
| Hermetic Product Leakage Rate | ≤1.01325×10-3Pa·cm3/s | ||||
Features
•Excellent shock & vibration ability
•35% smaller size than the SMP connectors
•Allows for axial and radial misalignment (blind mate applications)
•Performance up to 65 GHz

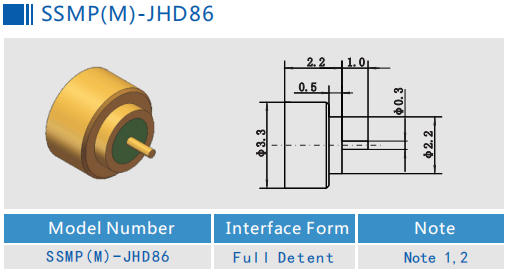

| Model No. | L(mm) | Interface Type | Note |
| SMP(M)-JHD | 1.3 | Full detent, hermatically sealed | Inteface deepth 1.4mm |
| SMP(M)-JHD-S | 1.3 | smooth bore, hermatically sealed | Inteface deepth 1.4mm |
| SMP(M)-JHD3 | 0.8 | Full detent, hermatically sealed | Inteface deepth 1.4mm |
| SMP(M)-JHD50 | 1 | Full detent, hermatically sealed | Inteface deepth 1.4mm |
| SMP(M)-JHD41-S | 3 | smooth bore, hermatically sealed | Inteface deepth 1.4mm |
| SMP(M)-JHD57-S | 1.3 | smooth bore, hermatically sealed | Inteface deepth 1.4mm |
Application:
* Network
* Satcom
* Computer/LANs
* Base Station
* Outdoor facilities
* Automotive
* Jump line join
* Basic facility
* Radar,microwave
* Telecommunications
* Mobile communication
* Instrumentation
* Radio, TV aerial system
Product Cataloge:
| RF Adapter |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Cable Assemblies |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
