PTFE Stainless Steel Male RF Coaxial Connector Microwave 24.5mm Max
Price:
Negotiable
MOQ:
100
Delivery Time:
Within in 3 weeks
Brand:
ELT (Elite)
Product Description
Series 3.5mm milimeter wave RF Coaxial male connector
3.5mm connector is a common used millimeter wave connector, the frequency is 33GHZ (up to 36GHZ), use air interface, can mate and interchange with SMA series, K series connectors with advantages of great bandwidth, high reliability, it is widely used in microwave measurement and millimeter wave devices.
|
Electrical Characteristics
|
||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~33GHz
|
|||
|
Rated Voltage
|
335VRMS (Maximum sea-level)
|
|||
|
Dielectrics Voltage-resistance
|
1000VRMS (Maximum sea-level)
|
|||
|
Insulation Resistance
|
≥5000MΩ
|
|||
|
|
Outer conductor
|
≤2mΩ
|
||
|
Center conductor
|
≤3mΩ
|
|||
|
VSMR
|
≤1.01+0.05f
|
|||
Interface Dimension(mm)

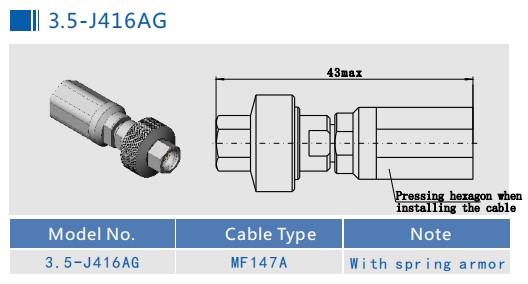

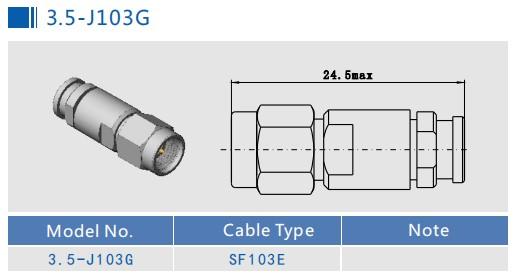

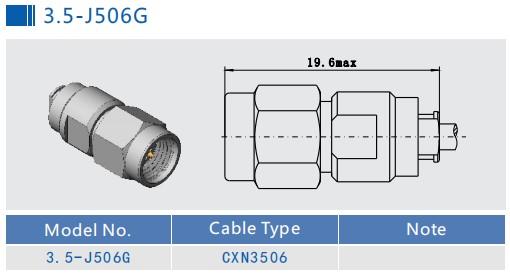

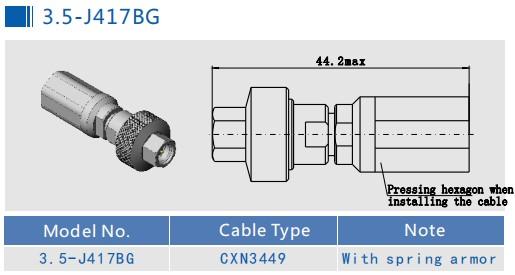

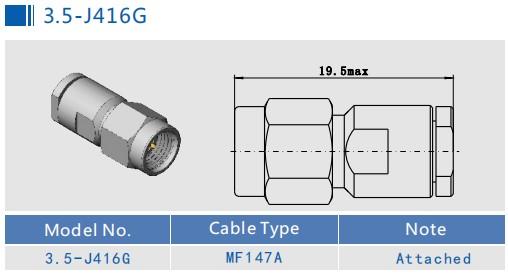

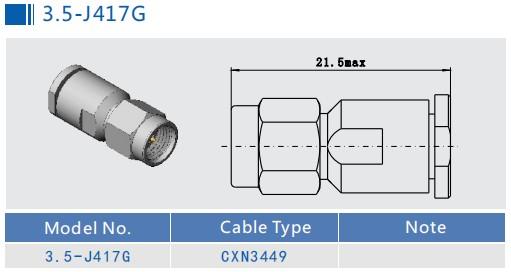

Outline Drawing:
| Materials and Mechanical Properties | ||
| Inner conductor | Male | Brass, Gold-plating |
| Female | Beryllium Bronze,Gold-plating | |
| Elastic | Beryllium Bronze,Nickel plated | |
| Shell & other | Brass/Stainless steel Gold-plating/passivated | |
| Insulator | PEI | |
| Sealing ring | Silicone rubber | |
| Temperature | -55C°~+125C° | |
|
Mating Cycles
|
500
|
|
|
Mating Torque
|
0.79N·m～1.13N·m
|
|
