3.5mm RF Coaxial Male Connector Stainless Steel for Semi Rigid/Flexible Cable
Price:
Negotiable
MOQ:
100
Delivery Time:
Within in 3 weeks
Brand:
ELT (Elite)
Product Description
Milimeter Wave 3.5mm RF Coaxial Male Connector for Cable
The 3.5mm connector is a commonly used millimeter wave connector with a frequency of 33GHz (up to 36 GHz). It adopts an air interface and can be matched and exchanged with SMA series and K series connectors. It has the advantages of large bandwidth and high reliability and is widely used in microwave measurement and millimeter wave devices.
|
Electrical Characteristics
|
||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~33GHz
|
|||
|
Rated Voltage
|
335VRMS (Maximum sea-level)
|
|||
|
Dielectrics Voltage-resistance
|
1000VRMS (Maximum sea-level)
|
|||
|
Insulation Resistance
|
≥5000MΩ
|
|||
|
|
Outer conductor
|
≤2mΩ
|
||
|
Center conductor
|
≤3mΩ
|
|||
|
VSMR
|
≤1.01+0.05f
|
|||
Interface Dimension(mm)

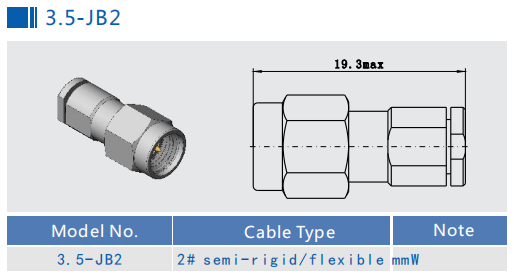

Outline Drawing:
| Materials and Mechanical Properties | ||
| Inner conductor | Male | Brass, Gold-plating |
| Female | Beryllium Bronze, Gold-plating | |
| Elastic | Beryllium Bronze, Nickel plated | |
| Shell & other | Brass/Stainless steel Gold-plating/passivated | |
| Insulator | PEI | |
| Sealing ring | Silicone rubber | |
| Temperature | -55C°~+125C° | |
|
Mating Cycles
|
500
|
|
|
Mating Torque
|
0.79N·m～1.13N·m
|
|
Related Items:
of 3.5mm RF Connector
