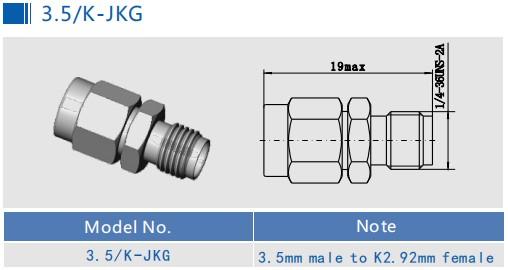

3.5mm K2.92mm Type Millimeter Wave Stainless Steel Adapter Female To Male
3.5mm to 2.92mm K Type Male to Female (MMW)Millimeter Wave Stainless Steel Adaptor
The 3.5 series Millimeter Wave Adaptor is a common used millimeter wave connector, the frequency is 33 GHZ (up to 36 GHZ), use air interface, can mate and interchange with SMA series, K series connectors, With advantages of great bandwidth, high reliability,it is widely used in microwave measurement and millimeter wave devices.
K-type(2.92mm,SMK) millimeter wave connectors, also called 2.92mm connectors. It's one of the most popular meter wave connectors.The broad frequency range is up to 40GHz. They can be mated with SMA and 3.5mm connectors.
Specification:
| Impedance | 50 Ω |
| Frequency Range | DC - 33 GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
|
Voltage Standing Wave Ratio |
≤1.05+0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.5 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: BeCu, Gold Plated | |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing |
Brass, Gold Plated |
| Insulator | PTFE |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
| Insertion loss | <.04 sqrt(f(GHz)) dB |
| Temperature range | -65 ℃~+165 ℃ |
| Contact pin | Gold Plating |
Related Items:
•The 2.4mm to 3.5mm RF adaptor is a precision microwave connectors.
•Stainless steel construction
•Superior electrical performance to 50 GHz
•Connectors in End Launch and Flange options
•Adapters to 2.4mm, SMP, 2.92mm, SMA.
•Connector mating interface per MIL-STD-348
•Great for applications that require high frequency transmission
•Superior electrical performance up to 50 GHz
•Excellent reliability where extreme shock & vibration conditions are experienced
•Quick connect cable plugs and adapter
Application:
* Avionics, radars
* Navigation system
* Missiles and guidance systems
* Research centres
* Satellite communications
* Telecommunication systems
* Instrumentation
* Automotive
* Computer/LANs
* Telecommunications
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your details.
