Solder J30J Series Female 25 Pins Connector For Cross Sectional Area 0.1 - 0.15mm2 Wire
Solder Series J30J Series Female 25 Pins Connector for Wire of Cross-sectional area 0.1-0.15m㎡
This series product is equivalent to the American MDM series products etc, the shell is aluminum alloy, contact space is 1.27mm, apply to the wire core section area is 0.1-0.15mm squared. With the small install space, light weight , reliable connect, excellent electromagnetic scree, good earthquake resistance, etc. It is widely used in small space required electronic equipment and apparatus.

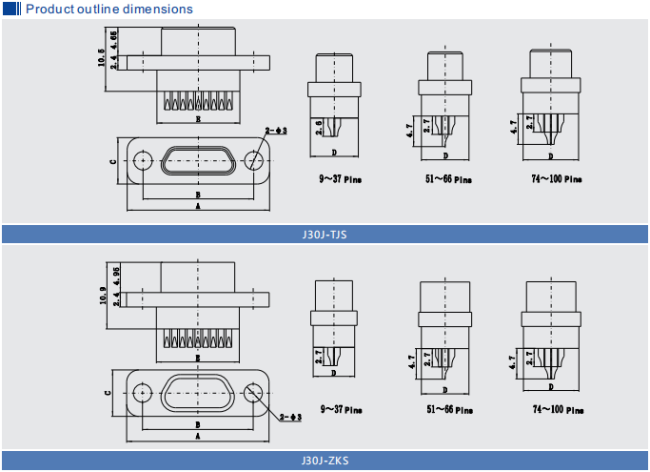

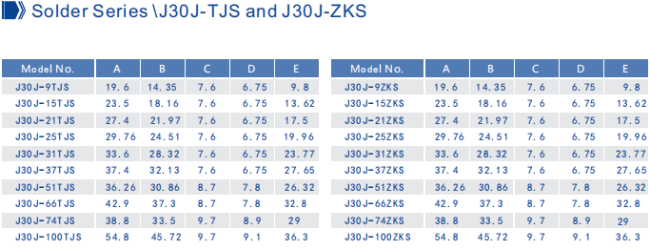

| Outer Dimension Drawing |
Specification:
| Voltage Rating | 300V |
| Current Rating | 3A |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 800V |
| Durability | 500 cycles |
| Environmental Temperature | -55℃ ~ + 125℃ |
| Relative Humidity | up to 95% at +40℃ |
| Vibration | 10Hz~ 2000Hz 196m/S² |
| Total acceleration RMS | 23.1G |
| Impact |
735m/S² |
J30J Series Features:
* Equivalent to the American MDM series products, etc
* Shell is aluminum alloy, contact space is 1.27mm, apply to the wire core section area is 0.1-0.15mm squared.
* With the small install space, light weight , reliable connect, excellent electromagnetic scree, good earthquake resistance, etc
* It's widely used in small space required electronic equipment and apparatus.

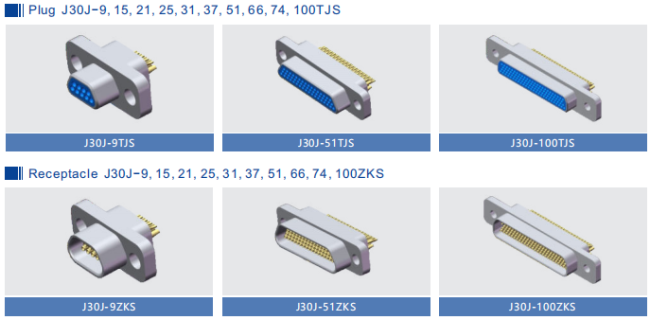

* The series of nine products 9,15,21,25,31,37,51,66,100cores.
Applications:
* Avionics, radars
* Telecommunication systems
* Navigation systems
* Research centres
* GPS
* UAV
* Communications
* Satcom
Packaging Details:
* Standard Export Carton
* According to customers' requirements
NOTE:
We can supply over 1000 types of Miro-D J30J Series connectors, if it is not match with your request,pls contact us.
