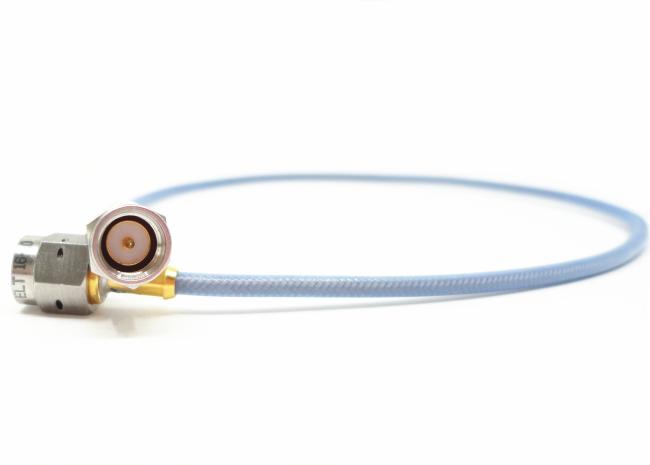

RF Custom Microwave Coax Cable Assemblies Au Plated 50Ω Impedance
Custom Coax Cable Assemblies 50Ω Impedance
Xi'an Elite Electronic Industrial Co., Ltd. is a national high-tech enterprise that specializes in R & D, manufacture and sales of RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components. These RF/Microwave products are widely used in aerospace, aviation, navigation, 5G, satellite, communications, antennas and other important electrical systems.
Specification:
| Item | Sucoflex102 | Sucoflex103E | Sucoflex104 | Sucoflex104E |
| Core wire | 0.8mm | 1.1mm | 1.43mm | 1.43mm |
| Insulation | / | / | / | / |
| Shield | 3.3mm | 4.1mm | / | / |
| Outer Diameter | 4mm | 4.6mm | 5.5mm | 5.5mm |
| Characteristic Impedance | 50Ω | 50Ω | 50Ω | 50Ω |
| Operating Frequency | DC-40GHz | DC-18GHz | DC-18GHz | DC-18GHz |
| VSWR | ≤1.3 | ≤1.25 | ≤1.3 | ≤1.3 |
| Insertion loss | 3dB/m (@40GHz) | 1.35dB/m (@18GHz) | 1.15dB/m (@18GHz) | 1.15dB/m (@18GHz) |
| Insulation Resistance | ≥15000MΩ | ≥15000MΩ | ≥15000MΩ | ≥15000MΩ |
| Dielectric voltage resistance | 1000V | 1000V | 1000V |
1000V |
Detailed Drawing
Application:
* Base Station
* Outdoor facilities
* Radar,microwave
* Telecommunications
* Computer/LANs
* Mobile communication
* Radio, TV aerial system
* Mobile communication
Advantages:
√ Specializes in manufacturing RF connector more than 20 years.
√ Have long and rich cooperation experience with national project components supply
√ With our own factory with 35,000㎡
√ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. with short delivery
√ Competitive price
√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE
√ Monthly average turnover is 10million
√ Custom-made (ODM) orders welcome here
√ We are committed to providing high-quality products to customers
Assembly shop capability:
*Automatic stripping
*Automatic laser stripping
*Temperature controlled soldering
*Clean room
*Laser marking
Product Cataloge:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
* Standard Export Carton
* According to customers' requirements
