K2.92mm WR34 BJ260 Waveguide To Coaxial Adapter Female 21.7GHz - 33GHz K/BJ260-KF8

WR34 BJ260 To K2.92mm Female Waveguide To Coax Adapter 21.7GHz~33GHz

The frequency of wave-guide to coax adapters processed by Elite Electronic (ELT) cover 5.4GHz-110GHz. With high reliability, small size and excellent performance, it is widely used in microwave measurement and millimeter wave equipment. The waveguide has standard rectangular and double-ridge waveguides, and non-standard waveguides can be customized according to user requirements. The coaxial end connection interface includes N, TNC, SMA, SMP, 3.5mm, K (2.92mm), 2.4mm, 1.85mm, 1.0mm and microstrip. Waveguide to coax adapters are divided into two types: end Launch and right angle launch from interface orientation. Among them, the RA launch type can also be used as a high-power structure.



Advantages:

-Our waveguide adapters are of high reliability, miniature size and excellent performance etc, which makes them extensively adopted in microwave measurement and millimeter wave devices etc.

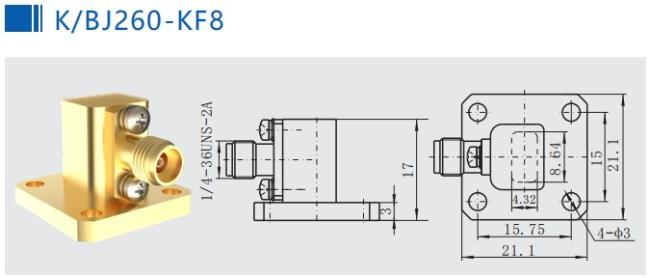

Outline Drawing of Model No. K/BJ260-KF8:

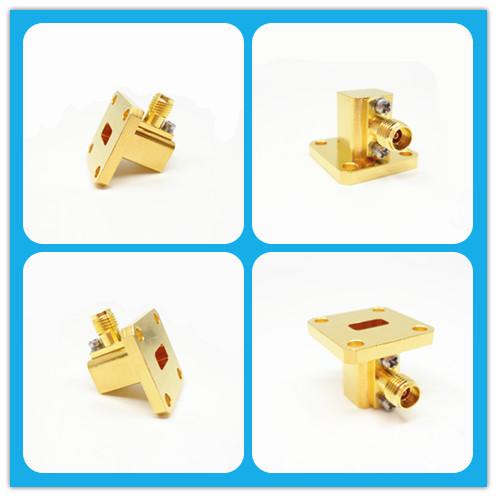

Pictures of WR34 BJ260 to 2.92mm Female Waveguide to Coax Adapter K/BJ260-KF8:





List of Waveguide to 2.92mm Coaxial Adapters:

Model Number	Description	Note
K/BJ220-KFE7	WR42(BJ220) to 2.92mm female end launch adapters	BJ220=WR42
K/BJ220-KF6	WR42(BJ220) to 2.92mm male right angle adapters
K/BJ260-KFE5	WR34(BJ260) to 2.92mm female end launch adapters	BJ260=WR34
K/BJ260-KF8	WR34(BJ260) to 2.92mm female right angle adapters
K/BJ320-KFE9	WR28(BJ320) to 2.92mm female end launch adapters	BJ320=WR28
K/BJ320-KF22	WR28(BJ320) to 2.92mm female right angle adapters



Cross-references of waveguide Standards
