11.9GHz-18GHz SMA Female Waveguide To Coaxial Adapter WR62 BJ140 SMA-BJ140-KF

 WR62 BJ140 To SMA Female Waveguide To Coax Adapter 11.9GHz~18GHz

The frequency of wave-guide to coax adapters processed by Elite Electronic (ELT) cover 5.4GHz-110GHz. With high reliability, small size and excellent performance, it is widely used in microwave measurement and millimeter wave equipment. The waveguide has standard rectangular and double-ridge waveguides, and non-standard waveguides can be customized according to user requirements. The coaxial end connection interface includes N, TNC, SMA, SMP, 3.5mm, K (2.92mm), 2.4mm, 1.85mm, 1.0mm and microstrip. Waveguide to coax adapters are divided into two types: end Launch and right angle launch from interface orientation. Among them, the RA launch type can also be used as a high-power structure.



Advantages:

-Our waveguide adapters are of high reliability, miniature size and excellent performance etc, which makes them extensively adopted in microwave measurement and millimeter wave devices etc.

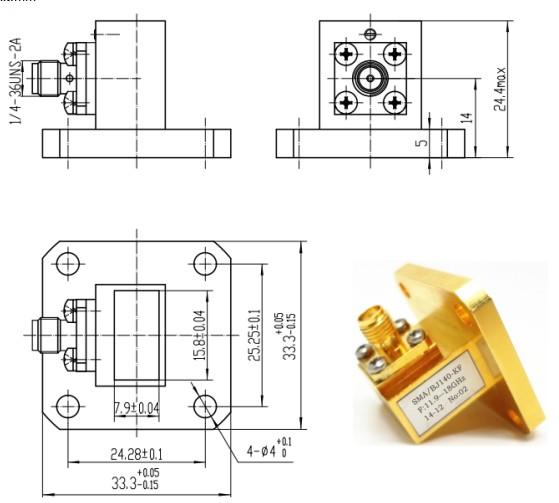

Outline Drawing of Model No. SMA/BJ140-KF:

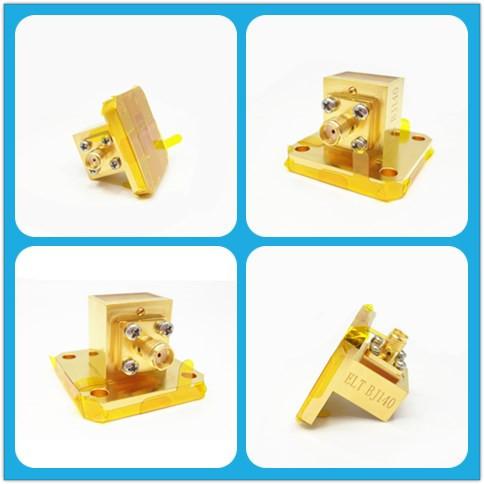

Pictures of WR62 BJ140 to SMA Female Waveguide to Coax Adapter SMA/BJ140-KF:





List of Waveguide to SMA Coaxial Adapters:

Model Number	Description	Note
SMA/BJ100-KFE2	WR90(BJ100) to SMA female end launch adapters	BJ100=WR90
SMA/BJ100-KF6	WR90(BJ100) to SMA male right angle adapters
SMA/BJ120-KFE	WR75(BJ120) to SMA female end launch adapters	BJ120=WR75
SMA/BJ120-KF6	WR75(BJ120) to SMA female right angle adapters
SMA/BJ140-KFE	WR62(BJ140) to SMA female end launch adapters	BJ140=WR62
SMA/BJ140-KF15	WR62(BJ140) to SMA female right angle adapters
SMA/BJ180-KFE5	WR51(BJ180) to SMA female end launch adapters	BJ180=WR51
SMA/BJ180-KF2	WR51(BJ180) to SMA female right angle adapters



Cross-references of waveguide Standard
