IR Class Certification Telescopic Foldable Barge Mounted Crane 3T 12M
IRClass Certification 3T12M Foldable Barge Mounted Crane
The 3T12M Foldable Barge Mounted Crane, meticulously crafted by OUCO specifically for Indian clientele, stands as a testament to our dedication to tailored solutions. These cranes have received the prestigious IRClass certification, signifying their compliance with rigorous quality standards. Notably, this marks OUCO's inaugural crane product certified by the Indian Classification Society.
Featuring a compact design, the two 3T12M cranes can be effortlessly installed on service vessels, rapid supply vessels, and barges' decks. Their exceptional versatility shines with a working radius spanning from 2.5 meters to 12 meters, granting adaptability for diverse lifting scenarios.
With a swift lifting speed of approximately 12m/min, these cranes ensure efficient and prompt operations. Their 360-degree rotation capability facilitates seamless maneuvering, complemented by a slew speed of 0.6 revolutions per minute. A wide range of additional options and extra features can also be configured for you.
Technical parameters
| TECHNICAL PARAMETERS | ||
| 1. | SWL | SEE LOAD CHART |
| 2. | MAX. WORKING RADIUS | 12M |
| 3. | MIN. WORKING RADIUS | 2.5M |
| 4. 5. |
HOISTING SPEED | |
| WINCH | 0~12m/min | |
| HOOK TRAVEL | 30m | |
| 6. | SLEWING SPEED | 0.6r/min |
| 7. | SLEWING ANGLE | 360° |
| 8. | FIRST LUFFING TIME | ~60S |
| 9. | SECOND LUFFING TIME | ~60S |
| 10. | BOOMS EXTENSION TIME | ~90S |
| 11. | WORKING CONDITION | |
| TRIM | ≤2° | |
| HEEL | ≤5° | |
| 12. | MAX.WIND SPEED | |
| Working Condition | 20m/s | |
| Parking Condition | 55m/s | |
| ELEC-MOTOR POWER | Y180L-4-H | |
| POWER | 22kW | |
| SPEED | 1470r/min | |
| POWER RESOURCE | AC415V/30HZ/3P | |
| 13. | PROTECT CLASS | IP56 |
| 14. | INSUKATE CLASS | F |
| 15. | WORKING TYPE | S1 |
| 16. | Ambient Temperature | -10° ~+40° |
| 17. | Model | Marine crane |

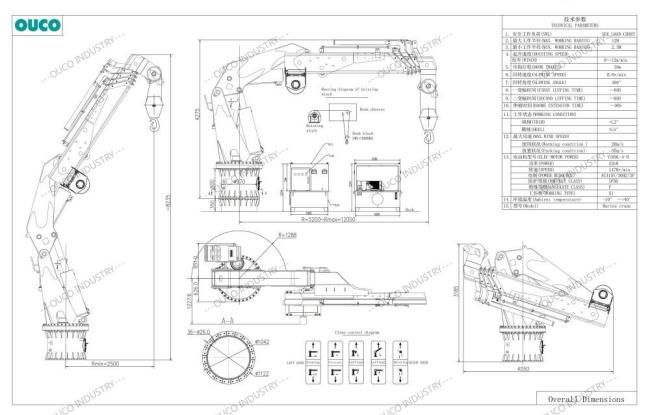

GA Drawing

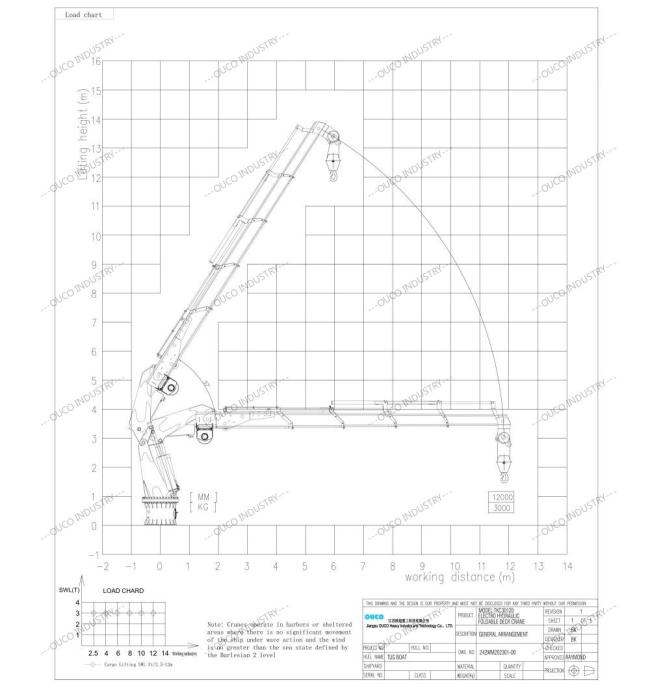

Load Chart

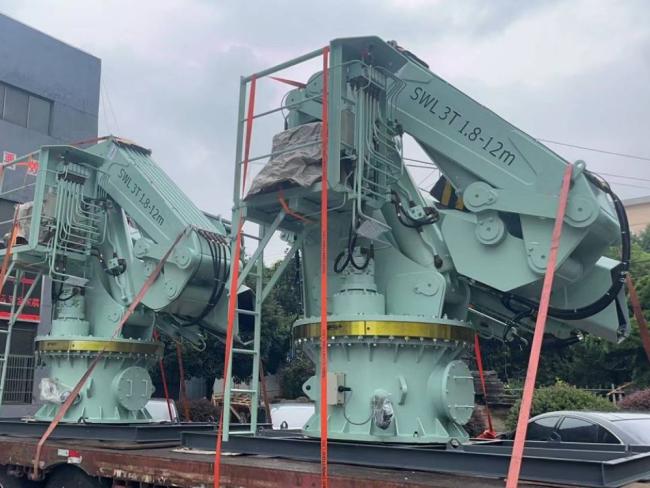

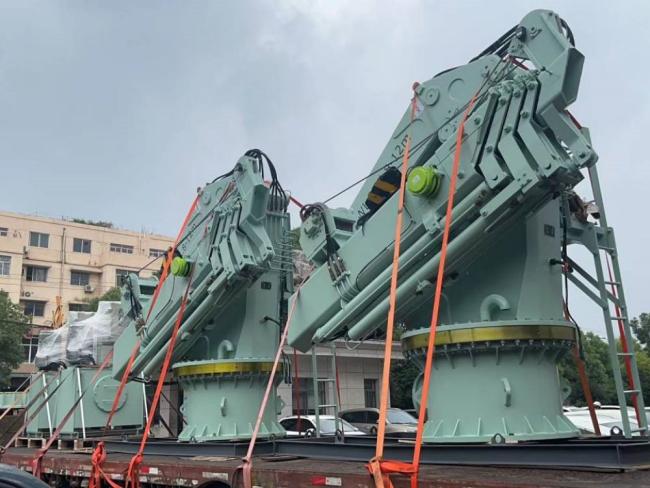

Product Picture
FAQ
1. Q: Can this type work in hazardous environments?
A: Sure! We can customize it for you, acid-proof or explosion-proof, no problem with that.
2. Q: Can you provide the serious lifting tools?
A: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. Q: How can we install the crane?
A: Our senior engineer can be on your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Q: Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
