Robust Design Offshore Pedestal Crane 3T@9M Easy Operating High Efficiency
Offshore Pedestal Crane 3T at 9M Jib Crane Easy Operating System for Operator
Product description
The cranes are available in the range from 1t to 200t lifting moment and are supplied according to customer requirements. The stiff boom cranes can be delivered within a broad range of certifications and numerous optional features.
Main Features and advantages
Easy maintenance at all situation.
Self contained unit with integrated hydraulic power pack.
Fail-safe brakes on all movements.
The variable speed hoist will automatically adjust to the highest possible speed for the appropriate load.
Suitable for all kinds of ships and low power consumption and high efficiency.
Technical Specification
| SWL | 3t@9m |
| Working Radius | 2~9m |
| Hoisting Speed | 0~10m/min |
| Hoisting Height | 25m |
| Slewing Speed | ~0.8r/min |
| Slewing Angle | 360° |
| Luffing Time | ~45s |
| Tirm | ≤2° |
| Heel | ≤5° |
| Motor Type | Y160K-4-H |
| Motor Power | 15KW |
| Motor Speed | 1460r/min |
| Power source | AC415V, 50Hz,3P |
| Protect Class | IP56 |
| Insulate Class | F |
| Working Type | S1 |

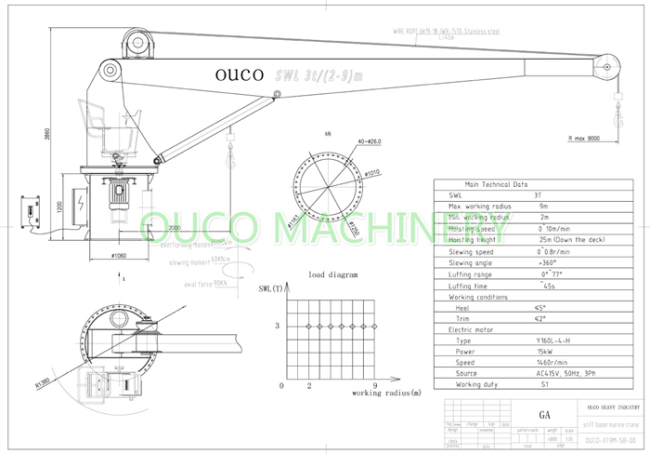

General Arrangement
Customer Bulid
OUCO factory specializes in crane field for over 10 years. OUCO can design and manufacture any type cranes based on your requirements.
| Brand | OUCO |
| Spare parts | 1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year( If needed, warranty time is available to be extended according to customers' requirements ) |
Standard equipment
# 360 C* continuous rotation.
# -10 C*----+45 C* working temperature.
# certified A36 & S690 steel structure.
# pedestal ready for mounting or weld to vessel main structure .
# stainless steel grease nipples.
# precise step less speed control.
# simultaneous operations of 2 or more function.
# emergency for hydraulic stop device.
# visual and audible warning alarm
Optional equipment
# lower temperature package up to -40 C*.
# certification for personal lifting.
# wireless romote control
# operator cabin with AC and heating.
# ATEX package and certification.
# man riding winch.
# centralized grease system.
# multiple setting of load limiting system.
# automatic overload protection system .
# warning and working lights.
# load indicator system.
# other upon request.
Detailed Images
Packing&Shipping
FAQ:
Q: What’s the capacity of your request crane?
A: From 0.5t to 100t.
Q: What’s working radius of your request crane?
A: From 1m to 100m.
Q: Which type of the crane should I choose?
A: Folding boom, knuckle boom, telescopic boom, stiff boom, etc. Some advices can be offered accordingly.
Q: Can this crane be explosion proof?
A: Sure, any extra function based on your requirement.
Q: Does your crane have safety devices?
A: Of course, all cut off limits and alarms for safety reasons.
Q: How can I install the crane to my vessel?
A: Our service engineers will go to the vessel site for guiding or ship the crane in whole piece.
Anything else? We will be pleased to answer all your questions and doubts.
