CCS Certificate Telescopic Boom Crane High Strength For Lifting Bulk Cargo
Offshore Hydraulic Crane CCS certificate Telescopic Crane for Lifting bulk cargo
Product description
OUCO Offshore 3T40M Telescopic boom crane is mainly used on the deck of bulk carrier or overload barge for handling a variety of cargo bulks.It has several hoisting points to fit the demand of vessel usage, which are 3T40M, 40T6.5M, 10T25M, makes the crane with long outreach to complete the lifting job.
Main Features and advantages
1. Easy maintenance at all situation
2. Self contained unit with integrated hydraulic power pack
3. Fail-safe brakes on all movements
4. Fully enclosed and equipped operator cabin with air condition
5. The variable speed hoist will automatically adjust to the highest possible speed for the appropriate load
6. Base on many year's design and fabrication experience of crane and other similar equipment
7. Suitable for all kinds of ships and low power consumption and high efficiency
8. Welded and high strength box boom for easy maintenance
9. With Many safety protection devices---hook up limiter and overload limiter, emergency stop button
Technical Specification
| SWL |
3T@40M&40T6.5M |
| Working Radius | 3~40m |
| Hoisting Speed | 0~15m/min |
| Hoisting Height | 35m |
| Slewing Speed | ~0.6r/min |
| Slewing Angle | 360° |
| Luffing Time | ~90s |
| Extension Time | ~180s |
| Tirm | ≤2° |
| Heel | ≤5° |
| Motor Type | Y160K-4-H |
| Motor Power | 90KW |
| Motor Speed | 1780r/min |
| Power source | AC440V, 60Hz, 3P |
| Protect Class | IP56 |
| Insulate Class | F |
| Working Type | S1 |
General Arrangement
Customer Bulid
OUCO factory specializes in crane field for over 10 years. OUCO can design and manufacture any type cranes based on your requirements.
| Brand | OUCO |
| Spare parts | 1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year( If needed, warranty time is available to be extended according to customers' requirements ) |
Standard equipment
# 360 C* continuous rotation.
# -10 C*----+45 C* working temperature.
# certified A36 & S690 steel structure.
# pedestal ready for mounting or weld to vessel main structure .
# stainless steel grease nipples.
# precise step less speed control.
# simultaneous operations of 2 or more function.
# emergency for hydraulic stop device.
# visual and audible warning alarm
Optional equipment
# lower temperature package up to -40 C*.
# certification for personal lifting.
# wireless romote control
# operator cabin with AC and heating.
# ATEX package and certification.
# man riding winch.
# centralized grease system.
# multiple setting of load limiting system.
# automatic overload protection system .
# warning and working lights.
# load indicator system.
# other upon request.

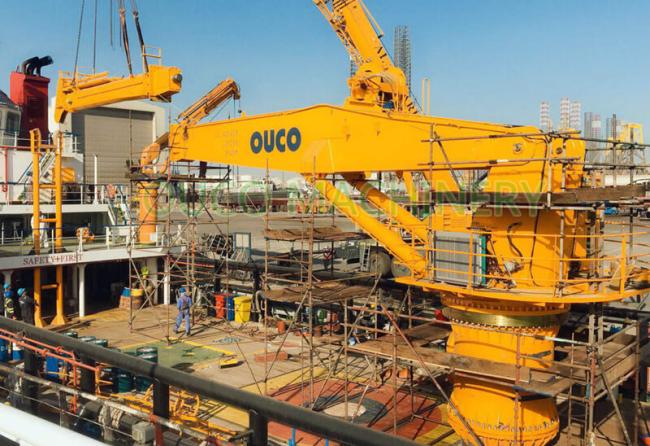

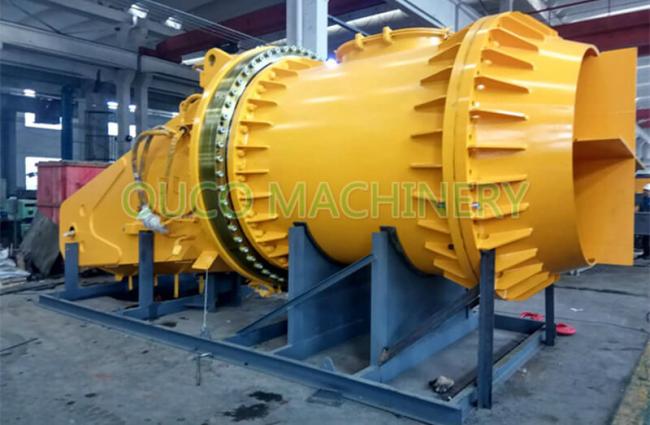

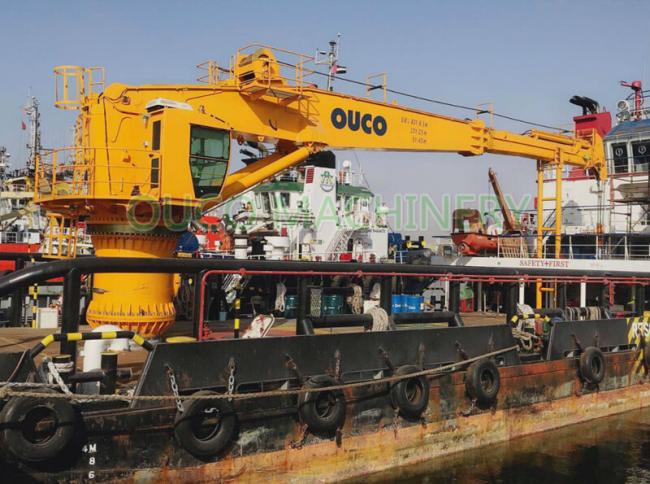

Detailed Images

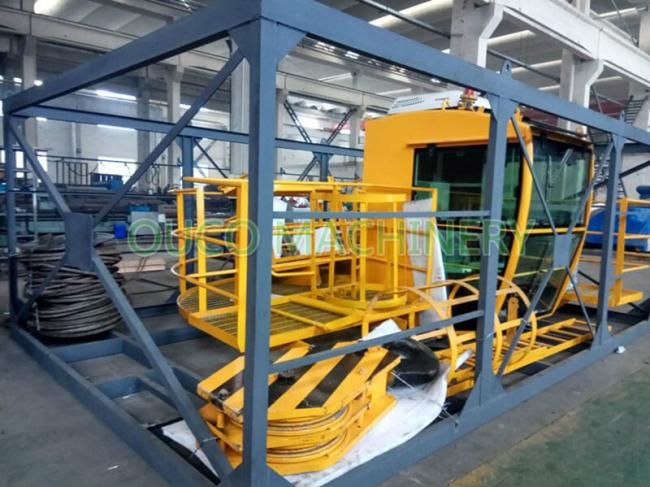

Packing&Shipping
FAQ:
Q:1. What's the information should I provide when inquiry?
A: More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q:2. How many operating methods for my selection?
A: Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q:3. Can this type work in hazardous environment?
A: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q:4. Can you provide the serious lifting tools?
A: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, etc as your requirement!
Q:5. How can we install the crane?
A: Our senior engineer can be your side to do the installation guide service and training.
Q:6. Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
