Ship Crane Electro - Hydraulic Marine Deck Crane 8T 15M Remote Control Telescopic Boom
Electro - Hydraulic Marine Deck Crane 8T 15M Remote Control Telescopic Boom
Product description

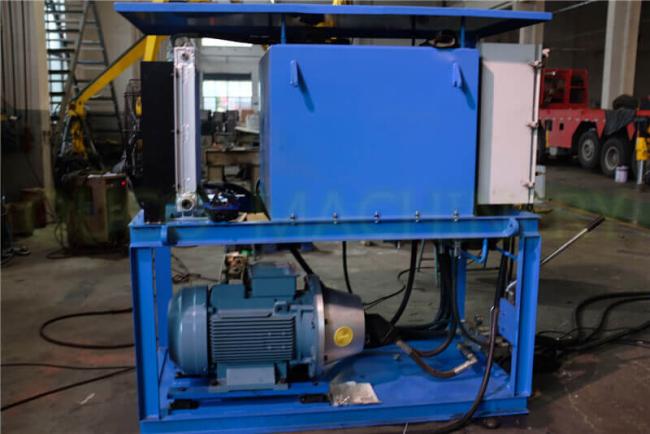

The biggest advantage of this crane is little space occupation with high efficiency is with hydraulic power unit,all the working action are driven by the hydraulic.It has luffing machinery,slewing machinery,hoisting machinery,every device includes safety device, actuated,the hydraulic and/or electric motor is stopped. This marine deck crane is especially designed and manufactured for cargo handling productivity and safety on a general cargo ship,container,bulk and other carriers.
SB series crane: End User Advantages
1. Compact design
2. Small footprint
3. Delivered as one complete unit ready for installation to vessels
4. Easy access for periodic maintenance, service and repair
5. 24 hours after sales searvices support.
Technical Specification
| SWL | 8T@15M |
| Working Radius | 3.5~15m |
| Hoisting Speed | 0~10m/min |
| Hoisting Height | 22m |
| Slewing Speed | ~0.5r/min |
| Slewing Angle | 360° |
| Luffing Time | ~100s |
| Extension Time | ~120s |
| Tirm | ≤2° |
| Heel | ≤5° |
| Motor Type | Y250K-4-H |
| Motor Power | 75KW |
| Motor Speed | 1580r/min |
| Power source | AC440V, 60Hz, 3P |
| Protect Class | IP56 |
| Insulate Class | F |
| Working Type | S1 |
General Arrangement
Customer Bulid
OUCO factory specializes in crane field for over 10 years. OUCO can design and manufacture any type cranes based on your requirements.
| Brand | OUCO |
| Spare parts | 1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year( If needed, warranty time is available to be extended according to customers' requirements ) |
Standard equipment
# 360 C* continuous rotation.
# -10 C*----+45 C* working temperature.
# certified A36 & S690 steel structure.
# pedestal ready for mounting or weld to vessel main structure .
# stainless steel grease nipples.
# precise step less speed control.
# simultaneous operations of 2 or more function.
# emergency for hydraulic stop device.
# visual and audible warning alarm
Optional equipment
# lower temperature package up to -40 C*.
# certification for personal lifting.
# wireless romote control
# operator cabin with AC and heating.
# ATEX package and certification.
# man riding winch.
# centralized grease system.
# multiple setting of load limiting system.
# automatic overload protection system .
# warning and working lights.
# load indicator system.
# other upon request.

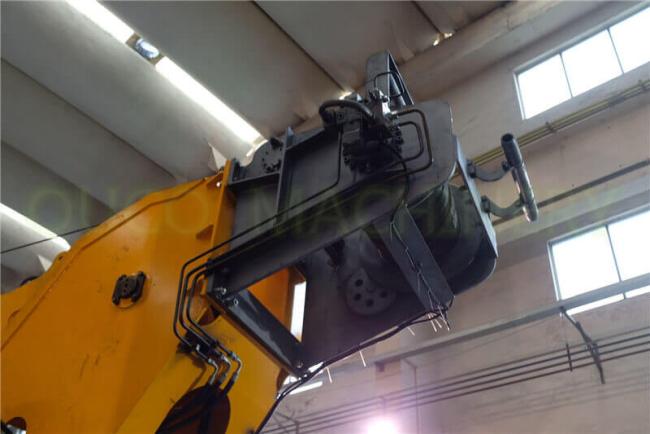

Detailed Images
FAQ
Q:1. What's the information should I provide when inquiry?
A: More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q:2. How many operating methods for my selection?
A: Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q:3. Can this type work in hazardous environment?
A: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q:4. Can you provide the serious lifting tools?
A: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, etc as your requirement!
Q:5. How can we install the crane?
A: Our senior engineer can be your side to do the installation guide service and training.
Q:6. Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
For more details, please feel free to contact me as below:
