Robust Design Ship Deck Cranes High Durability Excellent Positioning Performance
40T@26m Marine Cargo Handling Crane Cargo Ship Deck Marine Crane for sale
Product description
Cargo spotting systems enable even relatively unskilled operators to cope with the pendulum effects and centrifugal forces. They also help in keeping containers or other cargo units constantly aligned with a given axis, regardless of slewing motion and other external forces. Such electronic aids substantially improve productivity. Other benefits include: reduced operator fatigue, improved safety and lower cargo and ship structure damage.
The deck crane is a kind of ship's hoisting equipment usually set in the cabin deck which contents high technology of electricity, liquid, machine integration of deck. With the advantageof easy manipulation, impact resistance, good performance,safety and reliability, it can make a good use of the limited space of port, yard and other places. It has high working efficiency and good adaptability to the goods, especially for the dry bulk cargo handling.
Main Features and advantages
Excellent positioning performance
Long outreach at an optimum weight
Robust design
All machinery is weather-protected inside crane housing
Level-luffing
Technical Specification
| SWL |
40T@26M |
| Working Radius | 7~26m |
| Hoisting Speed | 0~18m/min |
| Hoisting Height | 50m |
| Slewing Speed | ~0.8r/min |
| Slewing Angle | 360° |
| Luffing Time | ~120s |
| Tirm | ≤2° |
| Heel | ≤5° |
| Motor Type | Y250M-4-H |
| Motor Power | 160KW |
| Motor Speed | 1760r/min |
| Power source | AC440V, 60Hz, 3P |
| Protect Class | IP56 |
| Insulate Class | F |
| Working Type | S1 |
Model and Parameter for reference
Customer Bulid
OUCO factory specializes in crane field for over 10 years. OUCO can design and manufacture any type cranes based on your requirements.
| Brand | OUCO |
| Spare parts | 1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year( If needed, warranty time is available to be extended according to customers' requirements ) |
Standard equipment
# 360 C* continuous rotation.
# -10 C*----+45 C* working temperature.
# certified A36 & S690 steel structure.
# pedestal ready for mounting or weld to vessel main structure .
# stainless steel grease nipples.
# precise step less speed control.
# simultaneous operations of 2 or more function.
# emergency for hydraulic stop device.
# visual and audible warning alarm
Optional equipment
# lower temperature package up to -40 C*.
# certification for personal lifting.
# wireless romote control
# operator cabin with AC and heating.
# ATEX package and certification.
# man riding winch.
# centralized grease system.
# multiple setting of load limiting system.
# automatic overload protection system .
# warning and working lights.
# load indicator system.
# other upon request.

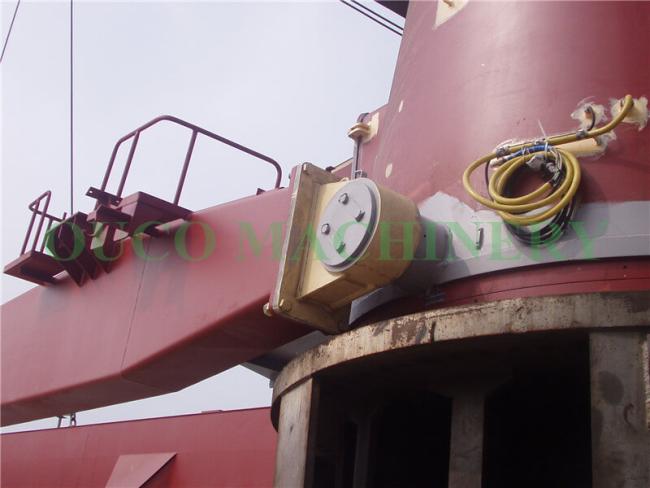

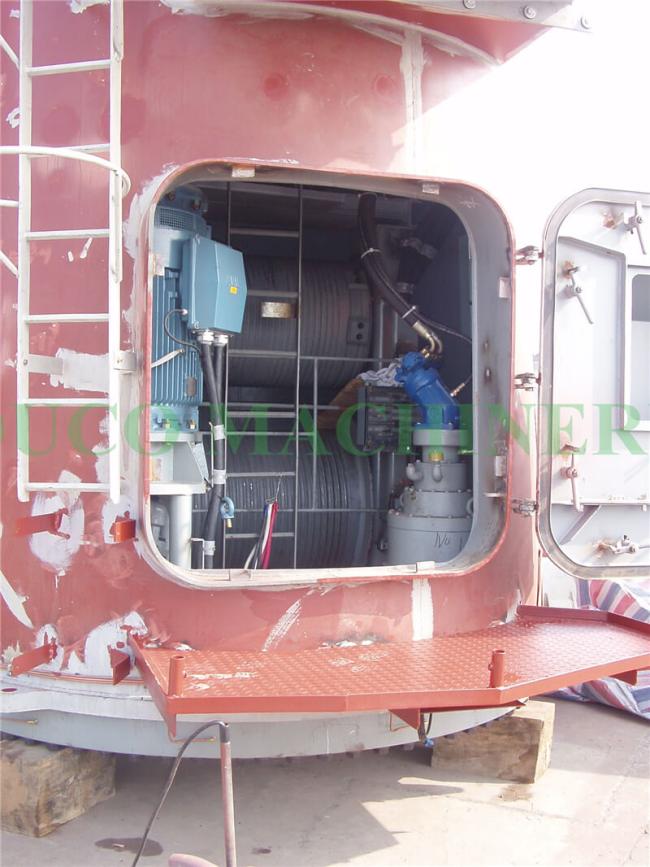

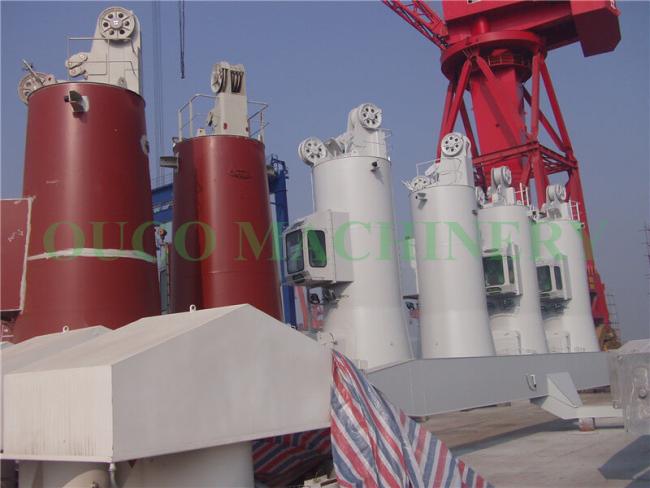

Detailed Images
Packing & Delivery
FAQ
Q: What’s working radius of your crane?
A: From 1m to 100m, we can design and make according to your requirement.
Q: Which crane type should I choose?
A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.
Q: Can this crane be explosion proof?
A: Sure, we can equip any extra function based on your requirement.
Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.
Q: How can I install the crane to my vessel?
A: We can send our service engineers to the vessel site for guiding or ship the crane in whole piece.
