Hydraulic Marine Telescopic Crane High Reliability PLC Automatic Control System
Marine Telescopic Crane 1T@8M Hydraulic Pedestal Crane Small Lifting Boat Crane
Product description
OUCO Boat crane is specially designed to lift or lower goods in and out of the water for repairing, storage or cleaning. The safe and controllable system will reduce the cost for maintenance significantly. The hydraulic lifting cylinder, cables and sheaves are all built in the crane mast resulting in a smooth looking crane. The biggest advantage of this crane is little space occupation with high efficiency is with hydraulic power unit,all the working action are driven by the hydraulic.It has luffing machinery,slewing machinery,hoisting machinery,every device includes safety device, actuated,the hydraulic and/or electric motor is stopped.
Main Features and advantages
1. The variable speed hoist will automatically adjust to the highest possible speed for the appropriate load.
2. With Many safety protection devices--hook up limiter and overload limiter, emergency stop button.
4. Welded and high strength box boom for low maintenance.
5. Self contained unit with integrated hydraulic power pack.
8. Suitable for all kinds of ships and low power consumption and high efficiency.
9. Emergency stop button.
10. Fail-safe brakes on all movements.
Technical Specification
| SWL | 1T@8M |
| Working Radius | 1~8m |
| Hoisting Speed | 0~15m/min |
| Hoisting Height | 25m |
| Slewing Speed | ~0.8r/min |
| Slewing Angle | 360° |
| Luffing Time | ~25s |
| Extension Time | ~30s |
| Tirm | ≤2° |
| Heel | ≤5° |
| Motor Type | Y160M-4-H |
| Motor Power | 11KW |
| Motor Speed | 1450r/min |
| Power source | AC440V, 60Hz, 3P/AC380V, 50Hz, 3P |
| Protect Class | IP44 |
| Insulate Class | F |
| Working Type | S1 |
| Advised Oil Fow | 25L/min |
| Design Temperature | -10°~+45° |

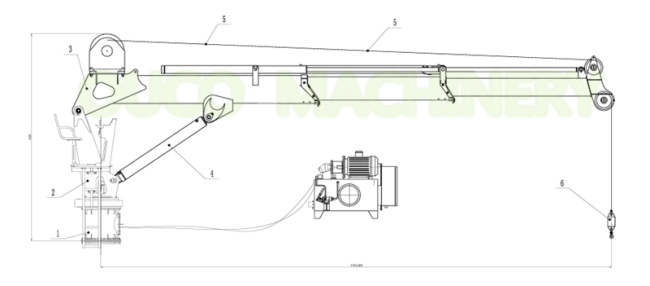

General Arrangement
Customer Bulid
OUCO factory specializes in crane field for over 10 years. OUCO can design and manufacture any type cranes based on your requirements.
| Brand | OUCO |
| Spare parts | 1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year( If needed, warranty time is available to be extended according to customers' requirements ) |
Standard equipment
# 360 C* continuous rotation.
# -10 C*----+45 C* working temperature.
# certified A36 & S690 steel structure.
# pedestal ready for mounting or weld to vessel main structure .
# stainless steel grease nipples.
# precise step less speed control.
# simultaneous operations of 2 or more function.
# emergency for hydraulic stop device.
# visual and audible warning alarm
Optional equipment
# lower temperature package up to -40 C*.
# certification for personal lifting.
# wireless romote control
# operator cabin with AC and heating.
# ATEX package and certification.
# man riding winch.
# centralized grease system.
# multiple setting of load limiting system.
# automatic overload protection system .
# warning and working lights.
# load indicator system.
# other upon request.

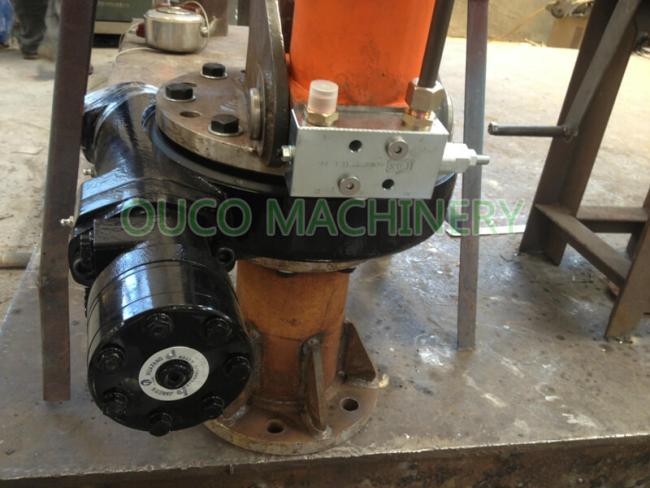

Detailed Images
FAQ
Q: What’s working radius of your crane?
A: From 1m to 100m, we can design and make according to your requirement.
Q: Which crane type should I choose?
A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.
Q: Can this crane be explosion proof?
A: Sure, we can equip any extra function based on your requirement.
Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.
Q: How can I install the crane to my vessel?
A: We can send our service engineers to the vessel site for guiding or ship the crane in whole piece.
