Product description
OUCO 5t20m straight/fixed boom marine crane:the hoisting point which can be 5T8M,5T12M,5T16M,5T18M,5T20M etc.
The hydraulic crane adopts the stable hydraulic components : the crane adopts the full hydraulic drive, which has the characteristics of stable operation, adjustable speed level, 360 degree turning, compact structure, combination of electro-hydraulic control and manual control, easy operation and use.The crane and all it associated components / equipment shall be designed in accordance to any leading classification societies.which is upon request. The crane shall be tested and adjusted ready for installation by welding or bolting to vessel deck. Power connection shall be provided for electrical supply through integrated electrical slip rings.

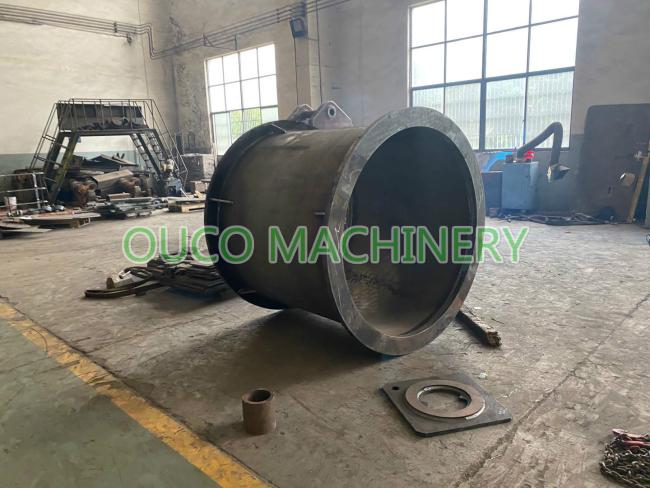

The crane is installed with a rolled steel pedestal for bolting or welding to deck with a height of standard and pedestal diameter is depend on the SWL of the crane. The standard SB crane will supply with an operator platform. Operator cabin is optional.
Stiff boom marine crane/offshore crane is designed as an electro-hydraulic driven articulated boom crane, with integrated electro-hydraulic power package or independent electro-hydraulic power package, delivered as a complete unit ready for installation to vessel. The crane is equipped with hydraulic powered winch, hydraulic powered luffing and hydraulic powered slewing system.
Technical Specification
| SWL | see load chart |
| Working Radius | 5.5-20m |
| Hoisting Speed | 0-15m/min |
| Hoisting height | 35m |
| Slewing Speed | ~0.7r/min |
| Slewing Angle | 360° |
| Luffing time | ~100s |
| Design Temperature | -10° - +45 ° |
| Tirm | ≤2° |
| Heel | ≤5° |
| Power | 55KW |
| Speed | 1480r/min |
| Power source | AC380V, 50Hz, 3P |
General Arrangement
Detailed Images

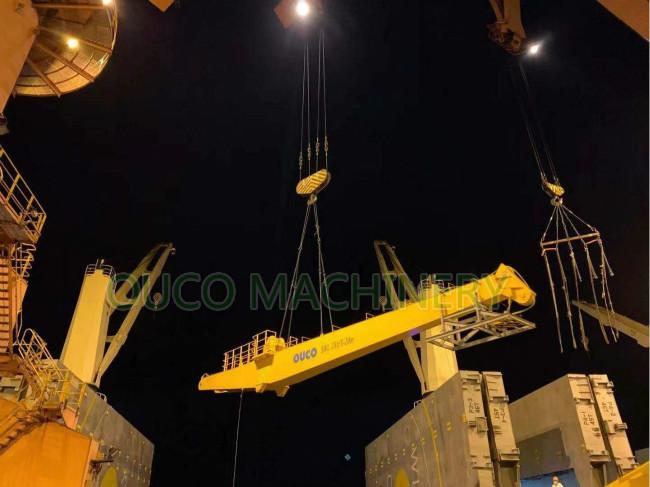

Packing&Shipping
FAQ:
Q: What’s the capacity of your request crane?
A: From 0.5t to 100t.
Q: What’s working radius of your request crane?
A: From 1m to 100m.
Q: Which type of the crane should I choose?
A: Folding boom, knuckle boom, telescopic boom, stiff boom, etc. Some advices can be offered accordingly.
Q: Can this crane be explosion proof?
A: Sure, any extra function based on your requirement.
Q: Does your crane have safety devices?
A: Of course, all cut off limits and alarms for safety reasons.
Q: How can I install the crane to my vessel?
A: Our service engineers will go to the vessel site for guiding or ship the crane in whole piece.
Anything else? We will be pleased to answer all your questions and doubts.
