3T Hydraulic Ship Deck Crane Stiff Boom Work Radius 4M
3T Hydraulic Ship Deck Crane Stiff Boom work radius 4M
Product description
Stiff boom cranes are based on a base slewing design with hydraulic cylinders and a hydraulic power system.
Stiff boom cranes with lifting torque from 1 ton to 200 ton, customized cranes can be provided according to customer requirements.
Stiff boom cranes have a wide range of certifications and numerous optional features.
Stiff boom cranes are commonly used in docks, equipment and port conditions.
Main Features and advantages
The variable speed hoist can automatically adjust to the maximum speed suitable for the load.
Our cranes are based on many years of experience in designing and manufacturing cranes and other similar equipment.
Jib cranes are suitable for all kinds of ships, with simple structure, low power consumption and high efficiency.
Welded high-strength box boom makes maintenance easy.
Equipped with on-hook limiter, overload limiter, emergency stop button and other safety protection devices.
Technical Specification
| SWL | 3t@4m |
| Working Radius | 1~4m |
| Hoisting Speed | 0~10m/min |
| Hoisting Height | 25m |
| Slewing Speed | ~0.8r/min |
| Slewing Angle | 360° |
| Luffing Time | ~45s |
| Tirm | ≤2° |
| Heel | ≤5° |
| Motor Type | Y160K-4-H |
| Motor Power | 15KW |
| Motor Speed | 1460r/min |
| Power source | AC415V, 50Hz,3P |
| Protect Class | IP56 |
| Insulate Class | F |
| Working Type | S1 |
General Arrangement

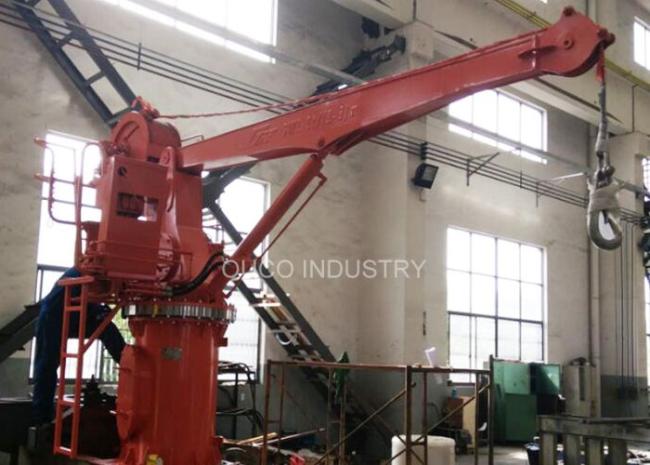

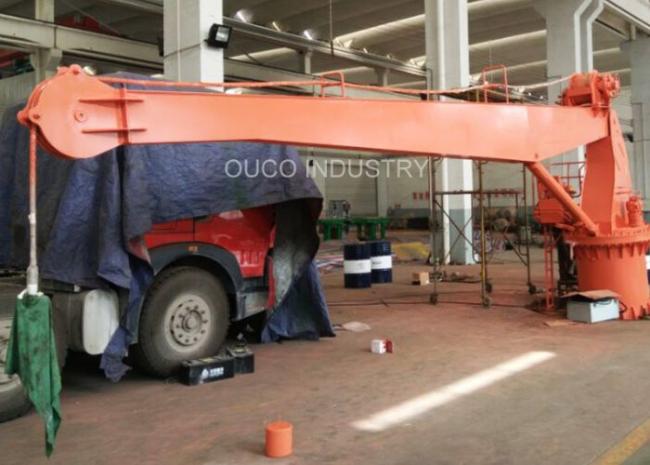

Detailed Images
Packing&Shipping
