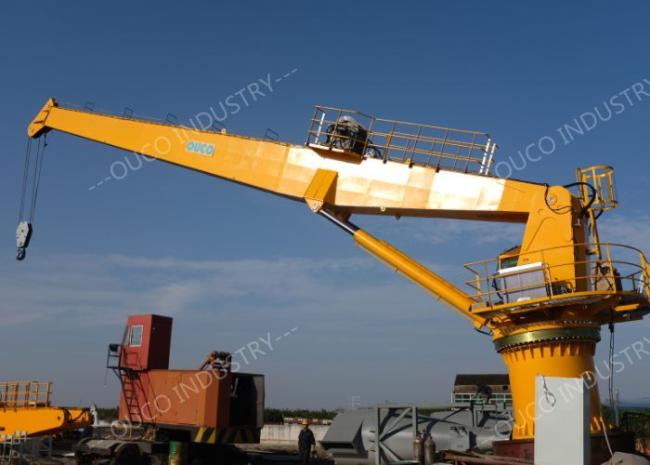

360 Degree Slewing Ship Deck Crane Pedestal Straight Boom
6T18M Ship Deck Crane 360° Slewing Pedestal Straight Boom
Product description
This crane is a hydraulic swivel and jib crane for lifting a variety of marine cargo, garbage and underwater equipment, as well as for other special purposes and water work.
It consists of an oil cylinder, an oil tank, a crane lifting mechanism, and a boom roughing mechanism. Lifting, rotating and luffing are driven by hydraulic systems.
Marine crane consists of stiff boom, base, rotating bearing, column, operating platform, winch, pulley, wire rope, hook, etc.
Advantages
* Flexible and reliable action
* Easy to operate and maintain
* Use a wide range of functions.
* Low price and easy replacement of parts.
* Short delivery time.
Technical specification
| SWL | 6T18M |
| Max.working radius | 18M |
| Min.working radius | 5.5m |
| Hoisting speed | 0-12m/min |
| Hoisting height | 30m |
| Slewing speed | 0.7r/min |
| Slewing angle | 360° |
| Luffing time | ~70s |
| Heel | ≤5° |
| Trim | ≤2° |
| Motor Power | 55KW |
| Speed | 1480rpm |
| Power resourse | AC 380V/50HZ/3P |
| Protect Class | IP56 |
| Oil flow | 100L/Min |
| Luffing angle | 0-75° |
Design Drawing And Detailed Photos
Packing
|
Packing
|
container
|
|
Delivery
|
Standard product : 1month
Customized product: 2 months
Certified products: 3-4 months
|
To better ensure the safety of your goods, professional, environmentally friendly, convenient and
efficient packaging services will be provided.
